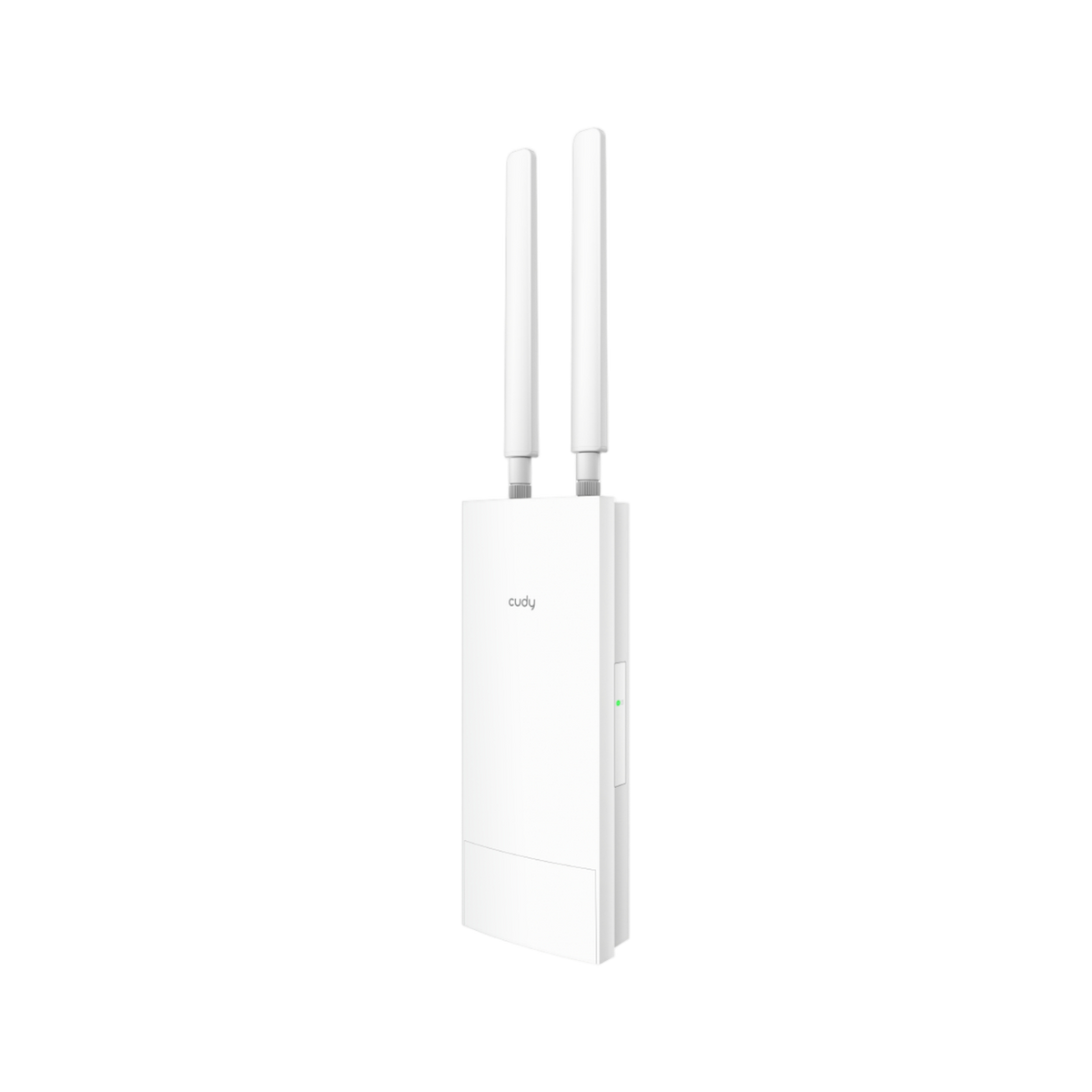

Cudy AP3000 Outdoor AX3000 Dual-Band Wi-Fi 6 Access Point (Wall/Ceiling-Mount, Gigabit PoE)

• Wi-Fi 6 (802.11ax) dual-band: 2402 Mbps on 5 GHz (3×3 MIMO) + 574 Mbps on 2.4 GHz (2×2 MIMO) for a combined AX3000 throughput.
• Maximum verified range of 320 m (1050 ft) in open environments, with 280 m (919 ft) in parks and 70 m (230 ft) on streets.
• 4 kV ESD air protection and 8 kV ESD contact protection for stability in harsh or storm-prone conditions.
• Five high-power amplifiers (3× on 5 GHz, 2× on 2.4 GHz) with up to 6 dBi antenna gain on 5 GHz for strong signal penetration.
• Powered via 802.3at PoE or Passive PoE (48-57 V) through the Gigabit RJ45 port, eliminating the need for a separate power run.
• Cudy Mesh support with Adaptive Routing enables seamless roaming and automatic path switching across the network.
• Operating temperature range of -10 °C to 60 °C (14 °F to 140 °F) and storage to -40 °C to 70 °C for wide environmental tolerance.

• Device Type: Outdoor Wi-Fi 6 Access Point (Wall/Ceiling-Mount)
• Wi-Fi Standard: Wi-Fi 6 (802.11ax)
• Frequency Bands: Dual-Band (2.4 GHz + 5 GHz), EU + DFS
• Wireless Speed: 5 GHz: 2402 Mbps | 2.4 GHz: 574 Mbps (AX3000 combined)
• Ethernet Ports: 1× Gigabit (GbE) RJ45 PoE In
• Antennas: 1× Internal + 2× External | 5 GHz: 6 dBi max | 2.4 GHz: 4 dBi max
• MU-MIMO: 5 GHz: 3×3 (3T3R) | 2.4 GHz: 2×2 (2T2R)
• Coverage: Max: 320 m (1050 ft) | Park: 280 m (919 ft) | Street: 70 m (230 ft) | Woods: 40 m (131 ft)
• Processor: MT7981BA, 1.3 GHz Dual-Core
• Memory: 256 MB DDR3 RAM | 128 MB NAND Flash
• Mesh Support: Cudy Mesh with Adaptive Routing
• Power Input: 802.3at PoE / Passive PoE (48-57 V) via Ethernet port
• Power Adapter: Input: 100-240 V AC, 50/60 Hz | Output: 48 V Passive PoE
• Max Power Consumption: 18 W
• Idle Power Consumption: 5 W
• Protection: IP65 | ESD Air: 4 kV | ESD Contact: 8 kV
• Operating Temperature: -10 °C to 60 °C (14 °F to 140 °F)
• Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
• Installation: Wall-Mounting, Ceiling-Mounting
• Dimensions: 460 × 337 × 450 mm
• Weight: 21.4 g
• Warranty: 24 Months

The RJ45 port is Gigabit (GbE), not 2.5G, despite the product line name referencing 2.5G. Passive PoE voltage range is 48-57 V; confirm compatibility with your PoE switch or injector before installation. Wi-Fi band configuration is EU + DFS.

• Length: 460 mm
• Width: 337 mm
• Height: 450 mm
• Weight: 21.4 g

• Cudy AP3000 Outdoor AX3000 Dual-Band Wi-Fi 6 Access Point × 1
• Power Adapter (100-240 V AC input, 48 V Passive PoE output) × 1
