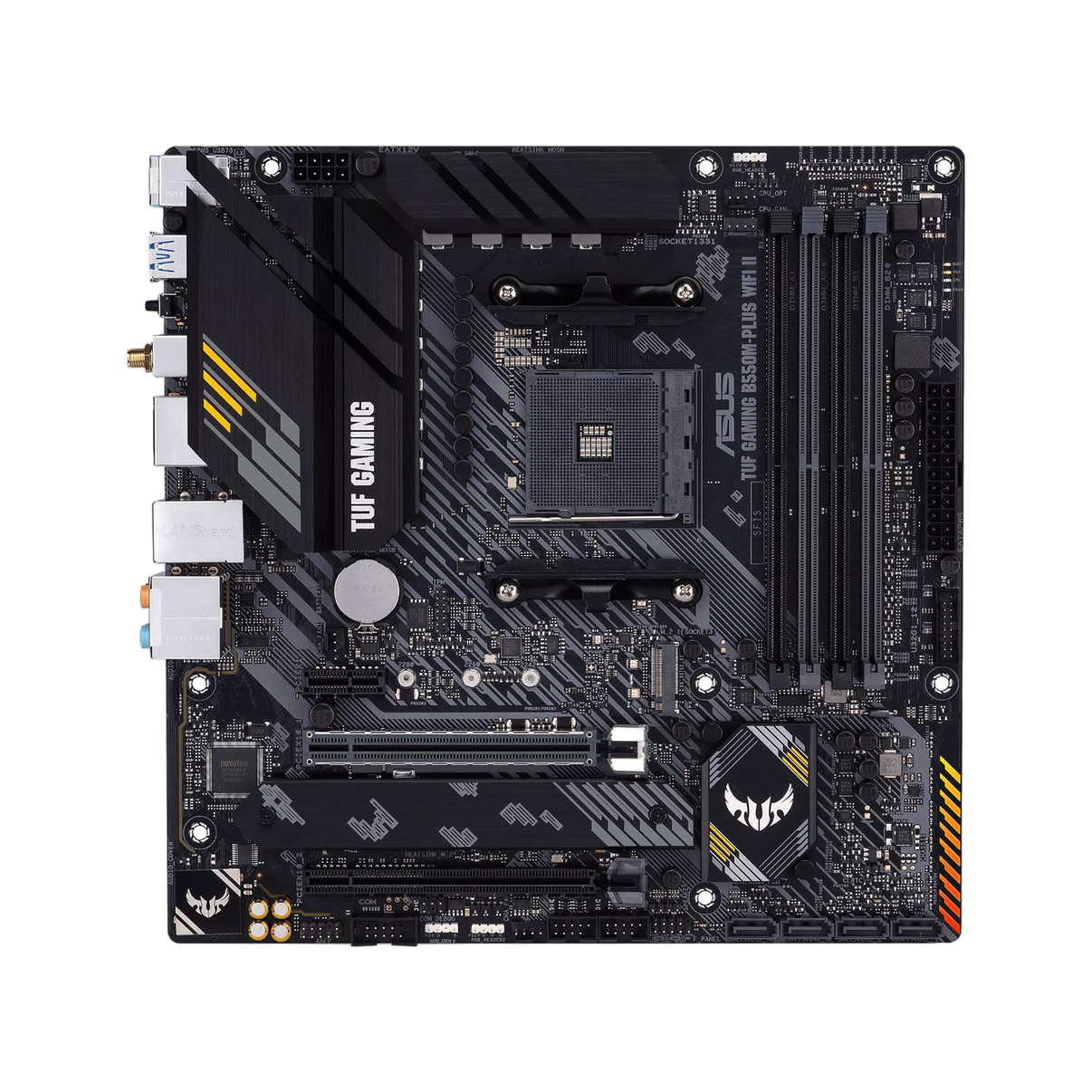

ASUS TUF Gaming B550M-Plus WiFi II mATX Gaming Motherboard

• AMD AM4 Socket: Compatible with Ryzen 5000, 5000 G-Series, 4000 G-Series, and 3000 Series desktop processors for broad CPU choice.
• 8+2 DrMOS Power Solution: Military-grade TUF components and DIGI+ VRM deliver stable, clean power for sustained performance.
• PCIe 4.0 Support: Primary M.2 slot and CPU PCIe x16 slot run PCIe 4.0 with Ryzen 5000/3000 Series CPUs for fast storage and GPU bandwidth.
• Dual M.2 Slots: Supports NVMe and SATA M.2 drives (2242/2260/2280 on M.2_1; up to 22110 on M.2_2) plus four SATA 6Gb/s ports with RAID 0, 1, 10 support.
• Intel 2.5Gb Ethernet: High-speed wired networking with TUF LANGuard protection for a stable, low-latency connection.
• USB 3.2 Gen 2 Rear I/O: Includes a USB Type-C and Type-A Gen 2 port, plus four Gen 1 and two USB 2.0 ports at the rear, with six additional front-panel USB headers.
• Compact mATX Form Factor: 244 x 244mm footprint fits mATX and ATX cases, backed by a 36-month warranty.

• Brand: ASUS
• CPU Compatibility: AMD Ryzen 5000 Series / 5000 G-Series / 4000 G-Series / 3000 Series Desktop Processors
• Socket: AMD AM4
• Chipset: AMD B550
• Form Factor: mATX
• Product Dimensions: 244 x 244 mm
• Memory Slots: 4 x DIMM
• Max Memory Capacity: 128GB
• Memory Type: DDR4, Un-buffered
• Memory Speeds: 2133 / 2400 / 2666 / 2800 / 3000 / 3200 / 3333(OC) / 3400(OC) / 3466(OC) / 3600(OC) / 3733(OC) / 3866(OC) / 4000(OC) / 4133(OC) / 4200(OC) / 4266(OC) / 4333(OC) / 4400(OC) / 4466(OC) / 4600(OC) / 4800(OC) / 4866(OC) MHz
• PCIe Slots (CPU): 1 x PCIe 4.0 x16 (Ryzen 5000/3000 Series) or PCIe 3.0 x16 (Ryzen 5000 G-Series / 4000 G-Series)
• PCIe Slots (Chipset): 1 x PCIe 3.0 x16 (x4 mode), 2 x PCIe 3.0 x1
• M.2 Slots: 2 x M.2 (Key M) - M.2_1: 2242/2260/2280 (PCIe 4.0 x4 or 3.0 x4 & SATA); M.2_2: 2242/2260/2280/22110 (PCIe 3.0 x4 & SATA)
• SATA Ports: 4 x SATA 6Gb/s
• RAID Support: RAID 0, 1, 10
• Ethernet: Intel 2.5Gb Ethernet x1
• Wi-Fi: Wi-Fi 6 (802.11 a/b/g/n/ac/ax), 2x2, 2.4GHz / 5GHz
• Bluetooth: Bluetooth 5.2
• Rear USB Ports: 8 total: 2 x USB 3.2 Gen 2 (1 x Type-A, 1 x Type-C), 4 x USB 3.2 Gen 1 (Type-A), 2 x USB 2.0 (Type-A)
• Front USB Headers: 6
• Video Output: 1 x DisplayPort 1.2 (max. 4K@60Hz), 1 x HDMI 2.1 (4K@60Hz)
• Audio: Realtek 7.1 Surround Sound HD Audio CODEC
• Warranty: 36 Months
• Weight: 1447 g

CPU PCIe slot mode and M.2_1 slot speed (PCIe 4.0 vs 3.0) depend on the installed processor - refer to the ASUS website for the full CPU support list and Memory QVL. ECC memory support varies by CPU. The secondary PCIe x16 slot (chipset) operates at x4 mode, and runs at x2 when the PCIe x1 slot is simultaneously occupied.

• Length: 244 mm
• Width: 244 mm
• Weight: 1.45 kg

• ASUS TUF Gaming B550M-Plus WiFi II mATX Gaming Motherboard x1
