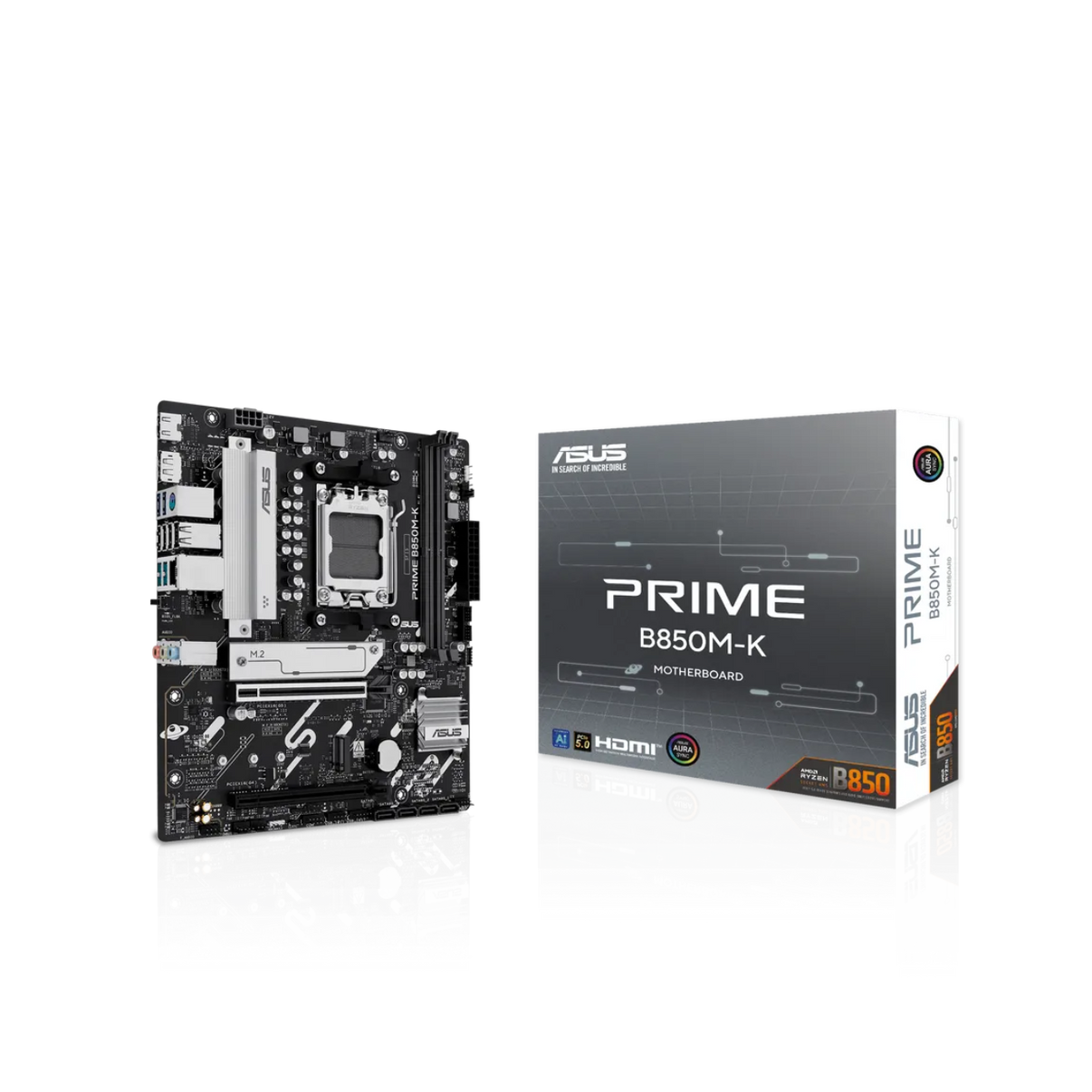

ASUS PRIME B850M-K AMD B850 AM5 Micro-ATX Motherboard

Name: ASUS PRIME B850M-K AMD B850 AM5 Micro-ATX Motherboard
Brand: ASUS
SKU: ASUS PRIME B850M-K
Price: 3618.00 ZAR
Availability: InStock

EFT Discount Price R 3,473.28

Normal Price: R 3,618.00

Tax included.Shipping calculated at checkout.

SKU: ASUS PRIME B850M-K

The ASUS PRIME B850M-K is a compact Micro-ATX AM5 motherboard built for AMD Ryzen™ 9000, 8000 and 7000 Series desktop processors. It gives modern PC builders a clean and practical...

Stock levels are AYOBA!

View details

Description

Key Features

Specifications

Additional Info

Warranty

What's included

The ASUS PRIME B850M-K is a compact Micro-ATX AM5 motherboard built for AMD Ryzen™ 9000, 8000 and 7000 Series desktop processors. It gives modern PC builders a clean and practical platform with DDR5 memory support, PCIe 5.0 graphics support, PCIe 5.0 M.2 storage, and fast 2.5Gb Ethernet for responsive wired networking.

With two M.2 slots, four SATA 6Gb/s ports, rear USB 10Gbps connectivity, front USB Type-C support, BIOS FlashBack™, Aura Sync support, and ASUS Q-LED Core, this board is a strong choice for compact gaming PCs, productivity desktops, and clean AM5 system builds.

AMD Socket AM5 motherboard for AMD Ryzen™ 9000, 8000 and 7000 Series Desktop Processors
AMD B850 chipset for modern AM5 desktop builds
Micro-ATX form factor for compact PC builds
DDR5 memory support with AMD EXPO™ and ASUS AEMP support
PCIe 5.0 x16 slot support with AMD Ryzen™ 9000 and 7000 Series processors
Two M.2 slots including one PCIe 5.0 x4 M.2 slot with supported CPUs
Realtek 2.5Gb Ethernet for fast wired networking
BIOS FlashBack™, Aura Sync, Q-LED Core, and front USB Type-C support

Brand: ASUS
Series: PRIME
Model: PRIME B850M-K
Product Type: Desktop Motherboard
Form Factor: Micro-ATX
Colour: Black
CPU Socket: AMD Socket AM5
CPU Support: AMD Ryzen™ 9000, 8000 and 7000 Series Desktop Processors
Chipset: AMD B850
Power Design: 8+2+1 phase digital power design
Memory Slots: 2 x DDR5 DIMM
Maximum Memory Capacity: 128GB
Memory Architecture: Dual Channel
Memory Features: AMD EXPO™, ASUS AEMP, ECC and Non-ECC un-buffered memory support
Graphics Output: 1 x HDMI, 1 x DisplayPort
Expansion Slots: 1 x PCIe 5.0 x16 slot supporting x16 mode with AMD Ryzen™ 9000 and 7000 Series processors; 1 x PCIe 4.0 x16 slot supporting x4 mode from AMD B850 chipset
Expansion Slot Note: AMD Ryzen™ 8000 Series processors support the main slot as PCIe 4.0 x16 supporting x8/x4 mode
Storage: 2 x M.2 slots, 4 x SATA 6Gb/s ports
M.2 Slot 1: Key M, type 2280, supports PCIe 5.0 x4 mode with AMD Ryzen™ 9000 and 7000 Series processors; supports PCIe 4.0 x4 mode with AMD Ryzen™ 8000 Series processors
M.2 Slot 2: Key M, type 2242/2260/2280, supports PCIe 4.0 x4 mode with AMD Ryzen™ 9000 and 7000 Series processors; supports PCIe 4.0 x4/x2 mode with AMD Ryzen™ 8000 Series processors
SATA Ports: 4 x SATA 6Gb/s
Ethernet: 1 x Realtek 2.5Gb Ethernet
Rear USB Ports: 2 x USB 10Gbps Type-A, 2 x USB 5Gbps Type-A, 4 x USB 2.0 Type-A
Front USB Support: 1 x USB 5Gbps connector supporting USB Type-C, 1 x USB 5Gbps header supporting 2 additional USB 5Gbps ports, 2 x USB 2.0 headers supporting 4 additional USB 2.0 ports
USB Type-C Power Delivery Output: Maximum 5V/3A
Rear I/O: 1 x PS/2 keyboard/mouse combo port, 1 x HDMI port, 1 x DisplayPort, 2 x USB 10Gbps Type-A, 2 x USB 5Gbps Type-A, 4 x USB 2.0 Type-A, 1 x BIOS FlashBack™ button, 3 x audio jacks, 1 x Realtek 2.5Gb Ethernet port
Cooling Headers: CPU fan header, chassis fan headers
Lighting Support: Aura Sync
Special Features: BIOS FlashBack™, Q-LED Core, ASUS LANGuard, SafeSlot

Product specifications table
Specification name	Specification Value
BIOS type	UEFI
Circuit board features	Fan control, ESD protection, Advanced configuration
Color pattern	Black, White
Compatible processor series	AMD Ryzen 7000 series, Amd Ryzen 8000 series, AMD Ryzen 9000 series
Translation missing: en.metafields.shopify.component-mounting-style	Surface-mount (SMD/SMT)
Expansion slots	PCIe 5.0 x16, 1 x PCIe 4.0 x16, M.2 PCIe 4.0 x4, DIMM
Material	Metal, Plastic
Memory technology	DDR5
Motherboard chipset family	AMD
Motherboard form factor	Micro-ATX
Motherboard memory features	Unbuffered
Multi-GPU technology	Not supported
Parallel processing technology support	Multi-core, Multi-GPU
PCB type	Rigid
Translation missing: en.metafields.shopify.primary-pcie-slot-version	PCIe 5.0
Processor socket	AM5
Storage drive interfaces supported	PCI express 4.0, PCI express 5.0, M.2, SATA III
Translation missing: en.metafields.shopify.usb-connector-type	USB Type-C, USB Type-A
USB standard	USB 3.2 gen 2
Wi-Fi standard	802.11ax
