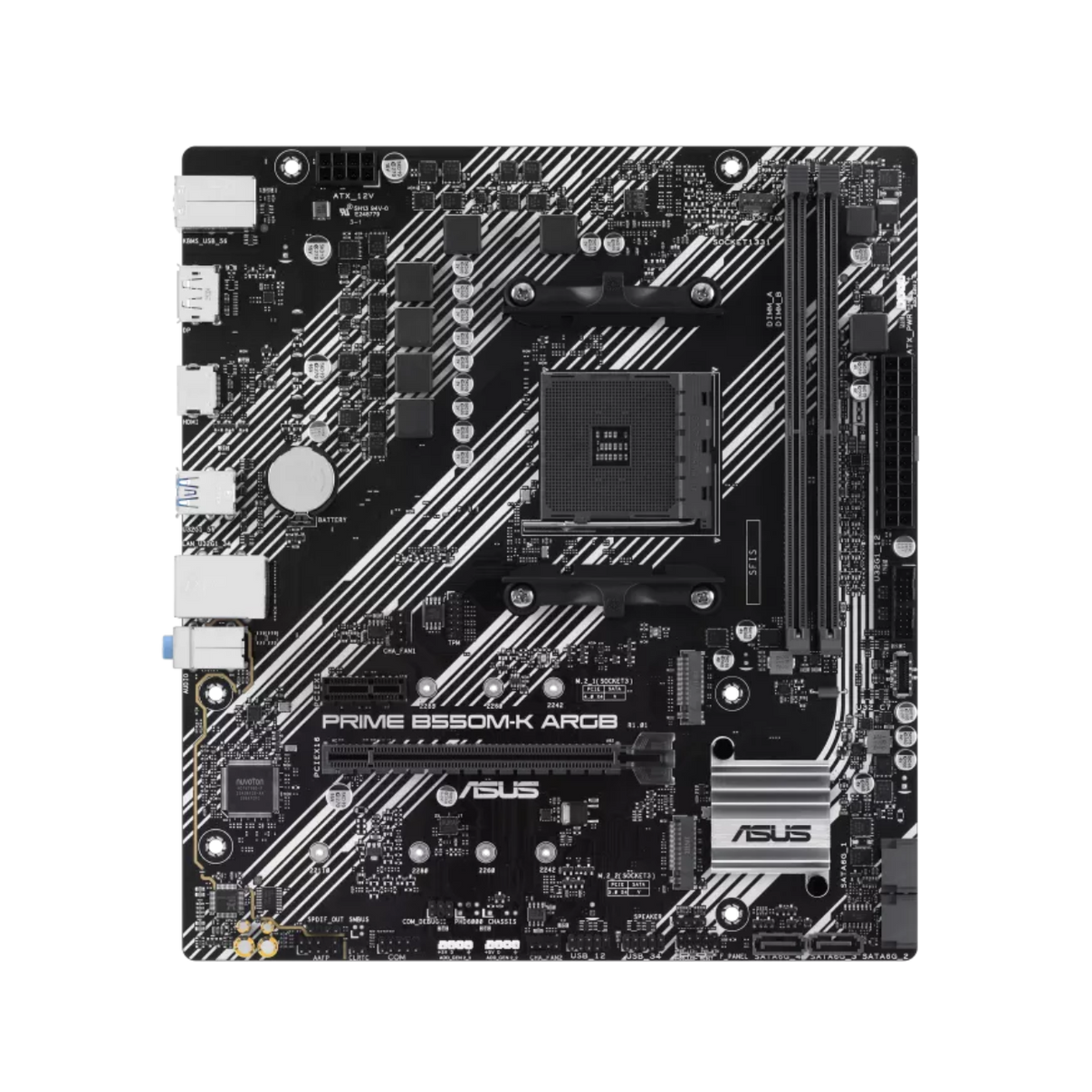

ASUS PRIME B550M-K ARGB AM4 Micro-ATX Motherboard

Name: ASUS PRIME B550M-K ARGB AM4 Micro-ATX Motherboard
Brand: ASUS
SKU: 90MB1GC0-M0EAY0
Price: 1999.00 ZAR
Availability: InStock

EFT Discount Price R 1,919.04

Normal Price: R 1,999.00

Tax included.Shipping calculated at checkout.

SKU: 90MB1GC0-M0EAY0

The ASUS PRIME B550M-K ARGB is a compact Micro-ATX motherboard built for AMD Ryzen™ AM4 desktop processors. It gives DIY builders a strong foundation for an everyday desktop, gaming PC, or productivity system with support for DDR4 memory, PCIe 4.0, dual M.2 storage, SATA 6Gb/s, and Realtek 1Gb Ethernet.

With Aura Sync support, addressable Gen 2 headers, Fan Xpert 2+, BIOS FlashBack™, and ASUS 5X Protection III, this board is designed to make building, cooling, tuning, and upgrading easier while keeping the system stable and reliable.

Stock levels are AYOBA!

View details

Description

Key Features

Specifications

Additional Info

Warranty

What's included

AMD B550 chipset motherboard for AMD Ryzen™ AM4 desktop processors
Micro-ATX form factor for compact desktop and gaming PC builds
Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, and 3000 Series desktop processors
2 x DDR4 DIMM slots with support for up to 64GB memory
PCIe 4.0 x16 slot support with compatible AMD Ryzen™ processors
Dual M.2 storage slots and 4 x SATA 6Gb/s ports
Realtek 1Gb Ethernet for wired networking
Aura Sync support with 3 x Addressable Gen 2 headers

Brand: ASUS
Series: PRIME
Model: PRIME B550M-K ARGB
Part Number: 90MB1GC0-M0EAY0
Product Type: Motherboard
Socket: AMD Socket AM4
Chipset: AMD B550
Supported CPUs: AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, and 3000 Series Desktop Processors
Memory Slots: 2 x DIMM
Maximum Memory: 64GB
Memory Type: DDR4
Memory Speeds: DDR4 5100(OC), 4866(OC), 4600(OC), 4466(OC), 4400(OC), 4333(OC), 4266(OC), 4200(OC), 4133(OC), 4000(OC), 3866(OC), 3733(OC), 3600(OC), 3466(OC), 3400(OC), 3333(OC), 3200, 3000, 2933, 2800, 2666, 2400, 2133
Memory Architecture: Dual Channel
ECC Support: ECC mode support varies by CPU
Graphics Output: 1 x DisplayPort, 1 x HDMI™ port
DisplayPort Support: Up to 4K@60Hz as specified in DisplayPort 1.4
HDMI Support: Up to 4K@60Hz as specified in HDMI 2.1
Expansion Slots: 1 x PCIe 4.0 x16 slot with AMD Ryzen™ 5000 Series / 3000 Series Desktop Processors; 1 x PCIe 3.0 x16 slot with AMD Ryzen™ 5000 G-Series / 4000 G-Series Desktop Processors; 1 x PCIe 3.0 x1 slot from AMD B550 chipset
Storage: 2 x M.2 slots and 4 x SATA 6Gb/s ports
M.2_1 Slot: Key M, type 2242/2260/2280, PCIe 4.0 x4 & SATA modes with AMD Ryzen™ 5000 Series / 3000 Series Desktop Processors
M.2_1 Slot with G-Series CPUs: Key M, type 2242/2260/2280, PCIe 3.0 x4 & SATA modes
M.2_2 Slot: Key M, type 2242/2260/2280/22110, PCIe 3.0 x4 & SATA modes
RAID Support: AMD RAIDXpert2 Technology supports PCIe RAID 0/1/10 and SATA RAID 0/1/10
Ethernet: 1 x Realtek 1Gb Ethernet
Rear USB Ports: 4 x USB 3.2 Gen 1 5Gbps Type-A, 2 x USB 2.0 Type-A
Front USB Support: 1 x USB 3.2 Gen 1 5Gbps connector supporting USB Type-C®, 1 x USB 3.2 Gen 1 5Gbps header supporting 2 additional USB 3.2 Gen 1 ports, 2 x USB 2.0 headers supporting 4 additional USB 2.0 ports
Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
Audio Features: Jack-detection, multi-streaming, front panel jack-retasking, up to 24-bit/192kHz playback, audio shielding, premium audio capacitors, dedicated audio PCB layers
Back Panel I/O: 4 x USB 3.2 Gen 1 5Gbps Type-A, 2 x USB 2.0 Type-A, 1 x DisplayPort, 1 x HDMI™ port, 1 x Realtek 1Gb Ethernet port, 3 x audio jacks, 1 x PS/2 keyboard/mouse combo port
Fan Headers: 1 x 4-pin CPU fan header, 2 x 4-pin chassis fan headers
Power Connectors: 1 x 24-pin main power connector, 1 x 8-pin +12V power connector
Internal Connectors: 3 x Addressable Gen 2 headers, 1 x Clear CMOS header, 1 x COM port header, 1 x Front Panel Audio header, 1 x S/PDIF Out header, 1 x Speaker header, 1 x SPI TPM header, 1 x 10-1 pin System Panel header
Special Features: ASUS 5X Protection III, DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core, Stainless-Steel Back I/O, Q-DIMM, Q-LED Core, Q-Slot, aluminum heatsink design, Aura Sync
Software Features: Armoury Crate, Aura Creator, Aura Sync, AI Suite 3, TurboV EVO, EPU, DIGI+ VRM, Fan Xpert 2+, EZ update, ASUS CPU-Z, Norton 360 Deluxe 60-day trial, WinRAR
BIOS: 128Mb Flash ROM, UEFI AMI BIOS
Manageability: WOL by PME, PXE
Operating System Support: Windows® 11, Windows® 10 64-bit
Form Factor: Micro-ATX
Dimensions: 24.4 x 22.1 cm
EAN: 4711387316030

Product specifications table
Specification name	Specification Value
BIOS type	UEFI, AMI
Circuit board features	ESD protection, Fan control, Advanced configuration
Color pattern	Black
Compatible processor series	AMD Ryzen 5000 Series, AMD Ryzen 5000 G-Series, AMD Ryzen 4000 G-Series, AMD Ryzen 3000 Series
Translation missing: en.metafields.shopify.component-mounting-style	Surface-mount (SMD/SMT)
Expansion slots	1 x PCIe 4.0 x16, PCIe 3.0 x16, PCIe 3.0 x1
Material	Metal, Plastic
Memory technology	DDR4
Motherboard chipset family	AMD
Motherboard form factor	Micro-ATX
Motherboard memory features	Unbuffered
Multi-GPU technology	Not supported
Parallel processing technology support	Multi-core
PCB type	Rigid
Translation missing: en.metafields.shopify.primary-pcie-slot-version	PCIe 4.0
Processor socket	AM4
Storage drive interfaces supported	SATA III
Translation missing: en.metafields.shopify.usb-connector-type	USB Type-C, USB Type-A
USB standard	USB 3.2 Gen 1, USB 2.0
