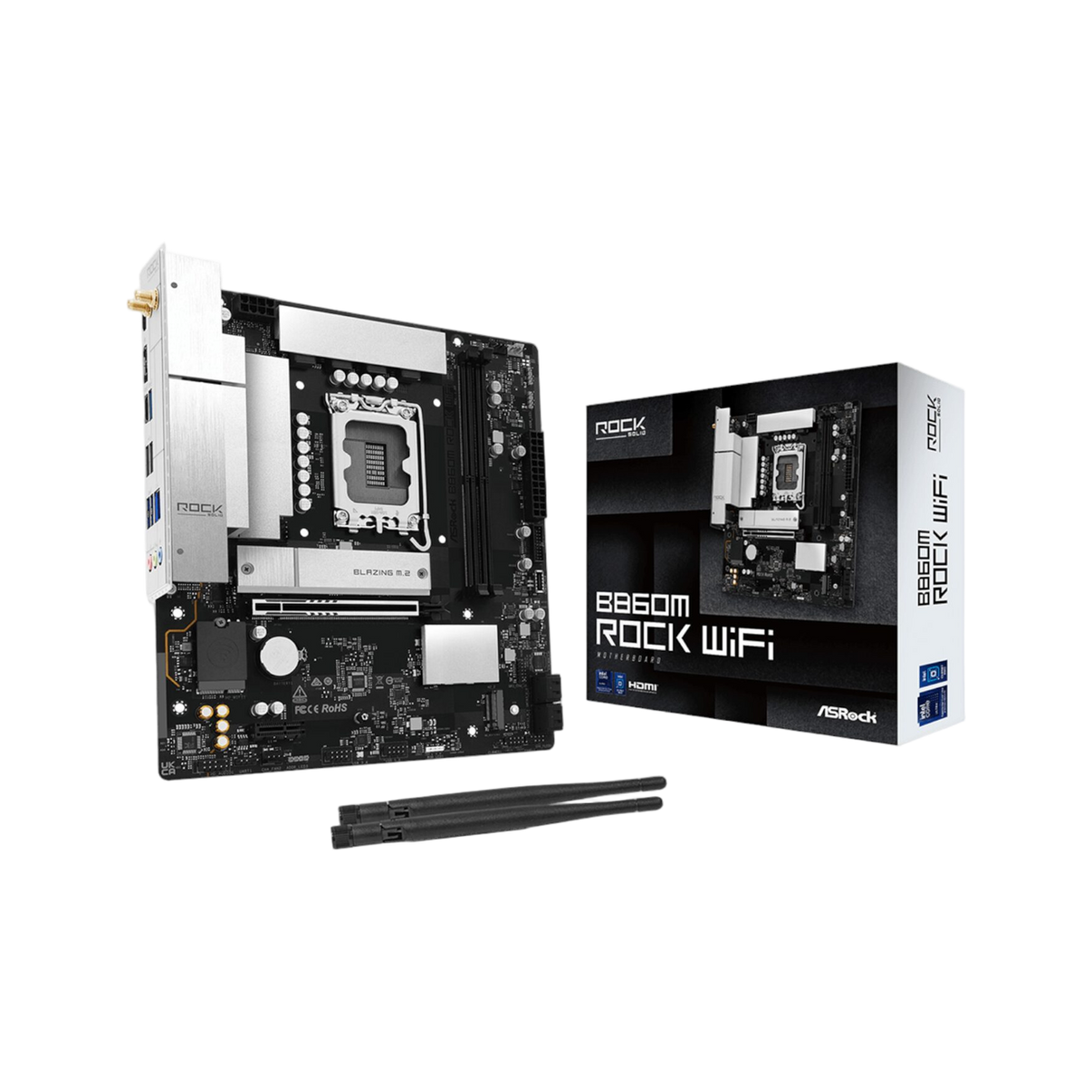

ASRock B860M Rock Wi-Fi Intel LGA1851 Micro-ATX Motherboard

• Intel B860 chipset, LGA1851 socket - compatible with Intel Core Ultra Series 2 processors
• 5+1+1+1+1 power phase design for stable, reliable CPU power delivery
• Dual-channel DDR5 with XMP 3.0 support, scalable up to 128GB across 2 DIMM slots
• DDR5 memory support up to 8333+ MHz for high-bandwidth performance
• Wi-Fi 6E (802.11ax) and Bluetooth 5.3 built in - no separate adapter needed
• 2.5G Dragon LAN (10/100/1000/2500 Mb/s) for fast, low-latency wired networking
• Rear USB includes 1 x USB 3.2 Gen2x2 Type-C (20 Gb/s), 3 x USB 3.2 Gen1 Type-A, and 2 x USB 2.0

• Brand: ASRock
• Model: B860M Rock Wi-Fi
• Chipset: Intel B860
• Socket: LGA1851
• Form Factor: Micro-ATX
• Colour: Black/White
• Memory Type: DDR5
• Memory Slots: 2
• Max Memory: 128 GB
• Memory Speed: Up to 8333+ MHz (XMP 3.0)
• PCIe Version: PCIe 5.0
• M.2 Slots: 2
• LAN: 2.5 Gigabit (10/100/1000/2500 Mb/s)
• Wi-Fi: Wi-Fi 6E (802.11axe)
• Bluetooth: Bluetooth 5.3
• Rear USB Ports: 1 x USB 3.2 Gen2x2 Type-C (20 Gb/s), 3 x USB 3.2 Gen1 Type-A, 2 x USB 2.0
• Dimensions (L x W): 244 x 218 mm
• Warranty: 36 Months

Compatible with Intel Core Ultra Series 2 processors on the LGA1851 socket. DDR5 memory is required; DDR4 is not supported. Two M.2 slots are included - refer to the ASRock product page for individual slot specifications and key compatibility. Wi-Fi antenna and I/O shield inclusion should be confirmed with distributor stock.

• Length: 244 mm
• Width: 218 mm

• ASRock B860M Rock Wi-Fi Motherboard (x1)
