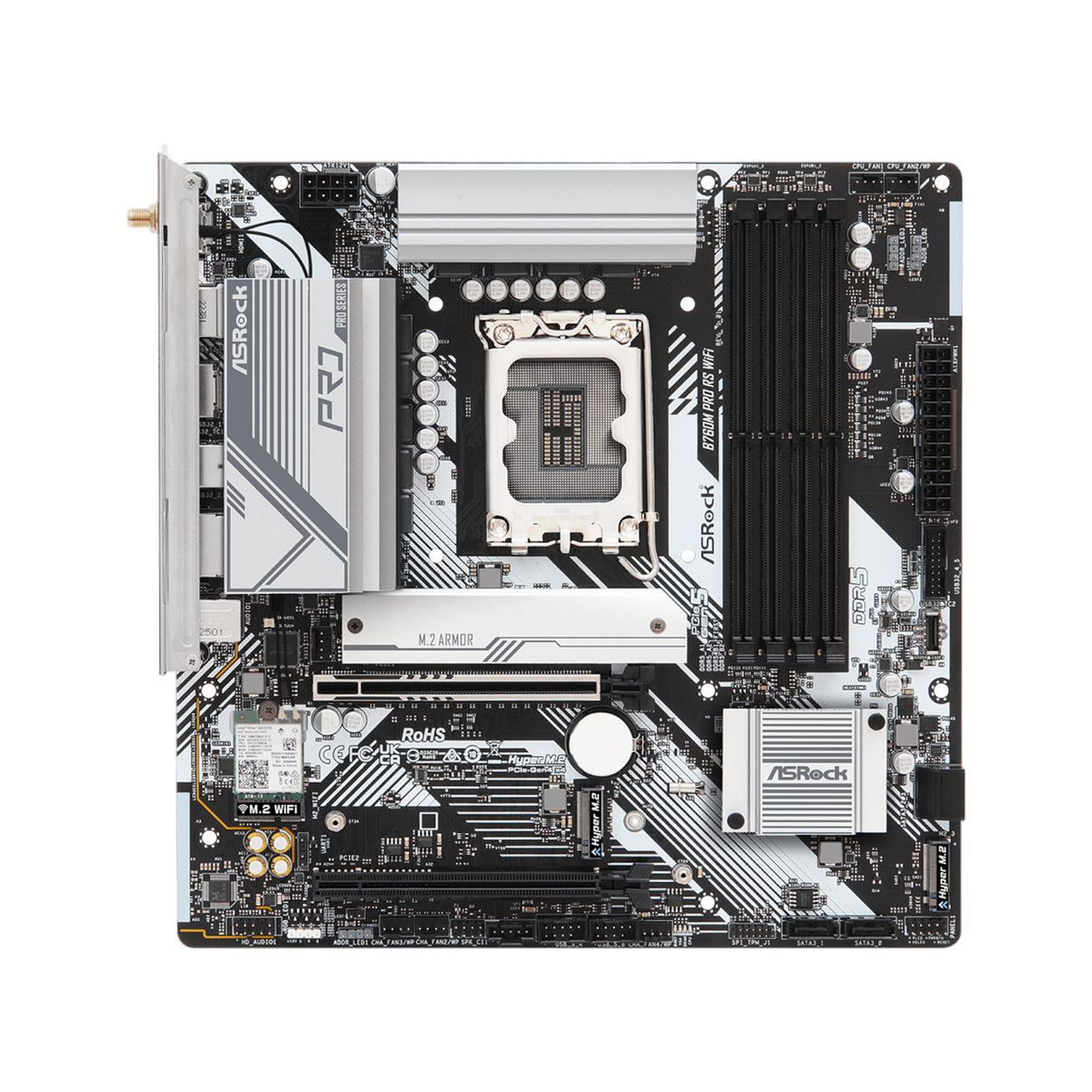

ASRock B760M Pro RS WiFi Intel LGA 1700 Micro ATX Gaming Motherboard

• LGA 1700 socket with Intel B760 chipset supports 12th, 13th and 14th Gen Intel Core processors, including Hybrid Technology and Turbo Boost Max 3.0
• PCIe 5.0 x16 slot ensures full bandwidth compatibility with current and next-generation graphics cards
• Three Hyper M.2 sockets (PCIe Gen4 x4) plus four SATA3 6.0 Gb/s connectors offer extensive storage options including NVMe boot support
• Integrated Wi-Fi 6E (802.11ax/axe) with 2x2 160MHz and 6GHz band support, plus Bluetooth 5.3, for fast and stable wireless connectivity
• 2.5 Gigabit LAN (Dragon RTL8125BG) with Smart Auto Adjust Bandwidth Control for low-latency wired networking
• Onboard HDMI 2.1 (4K 60Hz) and DisplayPort 1.4 (up to 8K 60Hz) for multi-display output via integrated graphics
• 7.1-channel HD Audio via Realtek ALC897 codec with Nahimic Audio support
• One RGB header and three Addressable LED headers for flexible lighting integration
• Micro ATX form factor (244mm x 244mm) fits a wide range of mid-tower and compact cases

• Brand: ASRock
• Model: B760M Pro RS WiFi
• Socket: Intel LGA 1700
• Chipset: Intel B760
• CPU Compatibility: 12th, 13th and 14th Gen Intel Core processors
• Form Factor: Micro ATX
• Dimensions: 244 mm x 244 mm
• Memory Type: DDR5
• Memory Slots: 4 x DDR5 DIMM
• Max Memory Capacity: 192 GB
• Memory Channels: Dual Channel
• Memory Speed (Native / OC): Up to 7200+ MHz (OC)
• Memory Standard: Non-ECC, Un-buffered; XMP 3.0
• PCIe x16 Slot (CPU): 1 x PCIe 5.0 x16
• PCIe x16 Slot (Chipset): 1 x PCIe 3.0 x16 (x4 mode)
• M.2 Slots: 3 x Hyper M.2 (PCIe Gen4 x4, Key M)
• SATA Ports: 4 x SATA3 6.0 Gb/s
• RAID Support: RAID 0, 1, 5, 10 (SATA)
• Wireless LAN: Wi-Fi 6E (802.11a/b/g/n/ac/ax/axe), 2x2 160MHz, 6GHz band
• Bluetooth: Bluetooth 5.3
• Wired LAN: 2.5 Gigabit (10/100/1000/2500 Mb/s), Dragon RTL8125BG
• Video Output: 1 x HDMI 2.1 (4K 60Hz), 1 x DisplayPort 1.4 (8K 60Hz / 5K 120Hz)
• Audio: 7.1-channel HD Audio, Realtek ALC897, Nahimic Audio
• HD Audio Jacks: Line In / Front Speaker / Microphone
• Rear USB Ports: 1 x USB 3.2 Gen1 Type-C, 3 x USB 3.2 Gen1 Type-A, 2 x USB 2.0
• Front USB Headers: 1 x USB 3.2 Gen1 Type-C header, 1 x USB 3.2 Gen1 header (2 ports), 2 x USB 2.0 headers (4 ports)
• Fan Connectors: 1 x CPU Fan (4-pin), 1 x CPU/Water Pump Fan (4-pin), 4 x Chassis/Water Pump Fan (4-pin)
• RGB Headers: 1 x RGB LED Header, 3 x Addressable LED Headers
• BIOS: 128Mb AMI UEFI with GUI
• Operating System Support: Windows 10 64-bit / Windows 11 64-bit
• Certifications: FCC, CE, ErP/EuP
• Warranty: 36 Months

Wi-Fi 6E 6GHz band support requires Microsoft Windows 11 and a 6GHz-compatible router; 6GHz availability is subject to regional regulatory approval. Intel UHD Graphics and onboard video outputs are only active when using a processor with integrated graphics. DDR5 maximum rated speeds above native frequency require XMP 3.0-compatible memory and appropriate BIOS configuration. RAID 0, 1, 5 and 10 are supported for SATA storage devices.

• Length: 244 mm
• Width: 244 mm

• ASRock B760M Pro RS WiFi Intel LGA 1700 Micro ATX Gaming Motherboard x1
• SATA Data Cables x2
• ASRock WiFi 2.4/5/6 GHz Antennas x2
• Screws for M.2 Sockets x3
• Standoff for M.2 Socket x1
• User Manual x1
