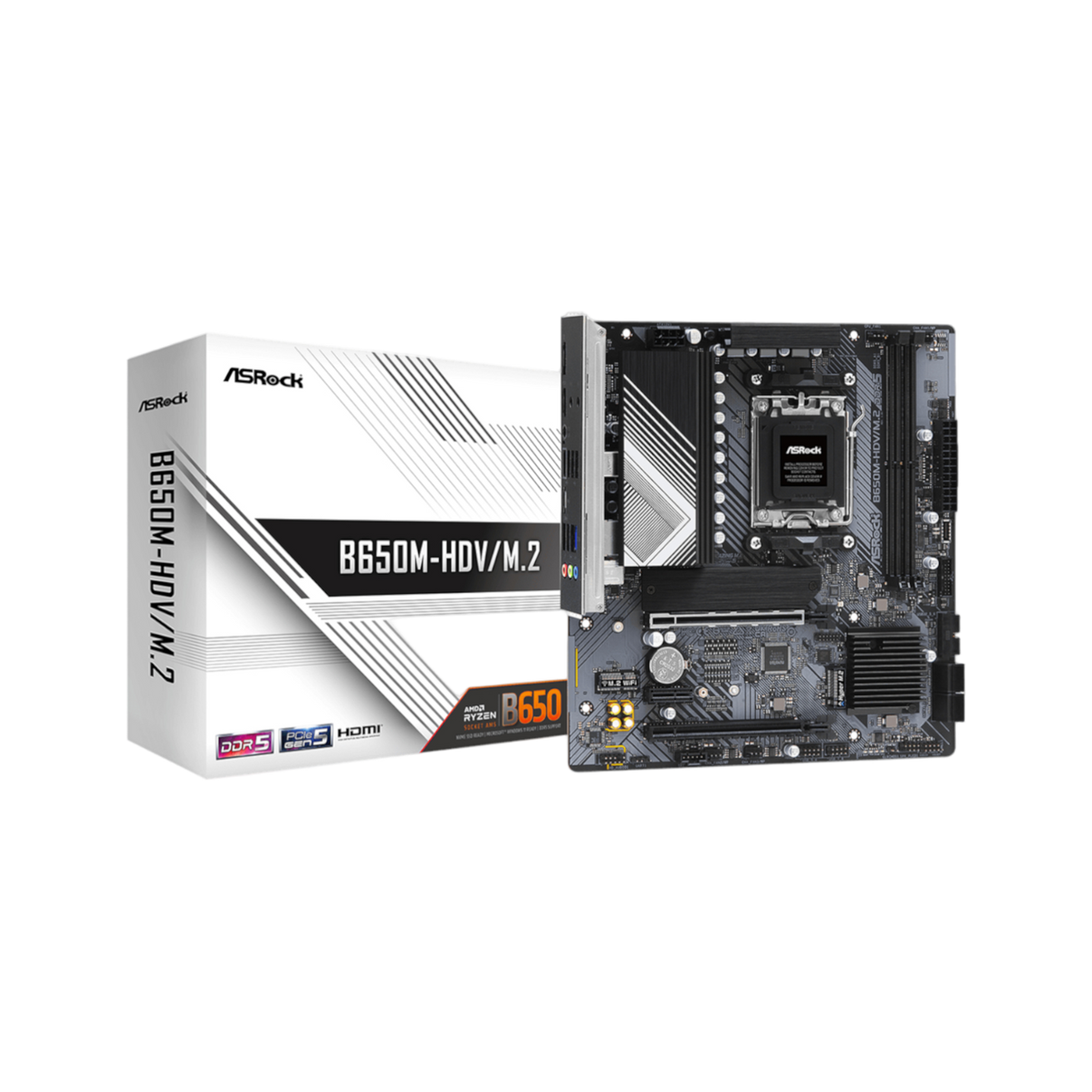

ASRock B650M-HDV/M.2 AM5 Micro-ATX Motherboard

• AMD AM5 Socket: supports Ryzen™ 9000, 8000 and 7000 Series processors, giving your build a clear upgrade path within the AM5 ecosystem
• AMD B650 Chipset with 8+2+1 Dr.MOS Power Phases: delivers stable, efficient power delivery to your CPU for reliable everyday and gaming use
• PCIe Gen5x4 Blazing M.2 + PCIe Gen4x4 Hyper M.2: two M.2 slots for high-speed NVMe storage, with the Gen5 slot ready for the latest drives
• 4x SATA3 Ports: plenty of room to add traditional SSDs or HDDs alongside your M.2 drives
• Dragon 2.5G LAN: faster-than-gigabit wired networking for lower latency online gaming and quicker local transfers
• USB 3.2 Gen2 Front Type-C Header + 7x USB 3.2 Gen1 Ports: broad, fast USB connectivity front and rear, including a rear Type-C port
• HDMI and DisplayPort Outputs: dual display output options via integrated AMD RDNA™ 2 graphics (actual support depends on CPU)
• Realtek ALC897 7.1 CH HD Audio with Nahimic Audio: clear, detailed onboard audio without needing a separate sound card
• BIOS Flashback Support + Pre-Installed I/O Shield: convenient BIOS updating and a cleaner, easier rear-panel installation experience

• Brand: ASRock
• Model: B650M-HDV/M.2
• Socket: AMD AM5
• Chipset: AMD B650
• Form Factor: Micro-ATX
• Supported Processors: AMD Ryzen 9000, 8000 and 7000 Series
• Power Phases: 8+2+1, Dr.MOS
• Memory Slots: 2x DDR5 DIMM
• Memory Configuration: Dual Channel
• Memory Speed: Up to 7200+ MHz (OC)
• PCIe Slots: 2x PCIe 4.0 x16, 1x PCIe 4.0 x1
• M.2 Slots: 1x Blazing M.2 (PCIe Gen5x4), 1x Hyper M.2 (PCIe Gen4x4)
• M.2 WiFi Key: 1x M.2 Key E
• SATA Ports: 4x SATA3
• Graphics Output: HDMI, DisplayPort
• Integrated Graphics: AMD RDNA 2 (CPU-dependent)
• LAN: Dragon 2.5G
• Audio: Realtek ALC897 7.1 CH HD, Nahimic Audio
• USB (Rear): 2x USB 3.2 Gen1, 1x USB 3.2 Gen1 Type-C, 1x USB 3.2 Gen2
• USB (Front Headers): 4x USB 3.2 Gen1, 1x USB 3.2 Gen2 Type-C
• BIOS Features: BIOS Flashback, ASRock Auto Driver Installer
• I/O Shield: Pre-installed
• Colour: Black
• Weight: 1350 g
• Warranty: 36 Months

Integrated AMD RDNA 2 graphics support is CPU-dependent; actual support may vary by processor. A M.2 Key E slot is included for optional WiFi module addition (WiFi not included). This motherboard supports AMD EXPO™ Technology for DDR5 memory overclocking.

• Length: 350 mm
• Width: 280 mm
• Height: 620 mm
• Weight: 1.35 kg

• ASRock B650M-HDV/M.2 AM5 Micro-ATX Motherboard (x1)
