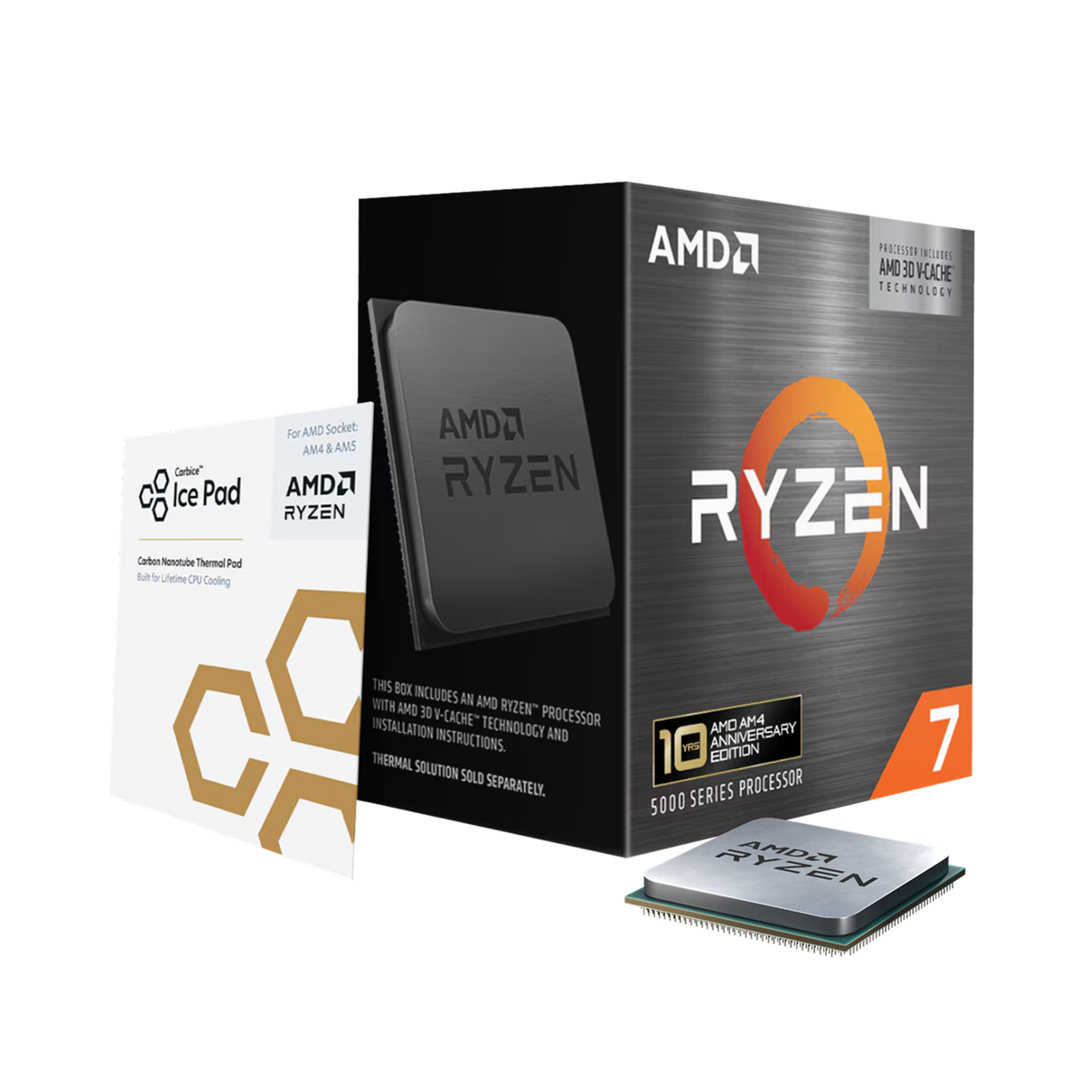

AMD Ryzen™ 7 5800X3D 8-Core 3.4GHz AM4 CPU 10 Year Anniversary Edition

AMD 3D V-Cache™ technology with a massive 96MB L3 cache for higher gaming frame rates

• 8 Zen 3 cores and 16 threads (Simultaneous Multithreading)
• 3.4 GHz base clock, boosting up to 4.5 GHz with Precision Boost 2
• Socket AM4 compatibility with X570, X470, B550, B450 and A520 chipsets
• Dual-channel DDR4 support up to 128GB (DDR4-3200), with ECC support on compatible boards
• PCIe® 4.0 connectivity with NVMe boot and RAID 0/1/10 support
• Supports Windows® 11 Gaming and AMD Ryzen™ VR-Ready Premium
• Built on TSMC 7nm FinFET process technology
• Unlocked for tuning, with a broad set of supported instruction extensions
• Cooler not included; liquid cooler recommended for optimal performance

• Name: AMD Ryzen™ 7 5800X3D
• Family: Ryzen 7 (Ryzen 5000 Series)
• Processor Architecture: Zen 3
• Former Codename: Vermeer
• CPU Socket: AM4
• # of CPU Cores: 8
• # of Threads: 16
• Multithreading (SMT): Yes
• Base Clock: 3.4 GHz
• Max. Boost Clock: Up to 4.5 GHz
• CPU Boost Technology: Precision Boost 2
• L1 Cache: 512 KB
• L2 Cache: 4 MB
• L3 Cache: 96 MB
• Default TDP: 105W
• Max. Operating Temperature (Tjmax): 90°C
• Supporting Chipsets: X570, X470, B550, B450, A520
• Instruction Set: x86-64
• System Memory Type: DDR4
• Memory Channels: 2
• Max. Memory: 128 GB
• Max. Memory Speed: DDR4-3200 (2x1R / 2x2R)
• ECC Support: Yes (requires motherboard support)
• PCI Express® Version: PCIe® 4.0
• Native USB: 4 x USB 3.2 Gen 2 (10 Gbps)
• Native SATA Ports: 2
• Processor Technology (CPU Cores): TSMC 7nm FinFET
• Graphics: Discrete graphics card required
• Thermal Solution (PIB): Not included
• Recommended Cooler: Liquid cooler recommended for optimal performance
• Operating System Support: Windows 11 / Windows 10 (64-bit), RHEL x86 64-bit, Ubuntu x86 64-bit

Zen 3 Performance, Ready to Boost

Built on the proven Zen 3 architecture, the 5800X3D runs at a 3.4 GHz base clock and boosts up to 4.5 GHz with Precision Boost 2, so it stays responsive whether you’re gaming, streaming or tackling everyday productivity. With 8 cores and Simultaneous Multithreading (SMT) for 16 threads, plus a 512KB L1 / 4MB L2 cache hierarchy, it has the muscle for serious multitasking as well as high-refresh gaming.

A Smart, Easy Upgrade for AM4 Builds

One of the 5800X3D’s biggest strengths is its socket AM4 compatibility. It works with X570, X470, B550, B450 and A520 chipsets, making it a superb drop-in upgrade for existing AM4 systems — often with just a BIOS update. It supports dual-channel DDR4 up to 128GB (DDR4-3200), PCIe® 4.0, and even ECC memory with compatible motherboards, so you get modern connectivity without the cost of a full platform change.

Built for Modern Gaming and Cool Operation

Supporting AMD 3D V-Cache™, Windows® 11 gaming and AMD Ryzen™ VR-Ready Premium, the 5800X3D is engineered for today’s most demanding experiences. It’s manufactured on TSMC’s 7nm process with a 105W default TDP and a 90°C maximum operating temperature. No cooler is included in the box, and AMD recommends a liquid cooler for optimal performance — so pair it with a capable AIO to keep it running at its

• AMD Ryzen™ 7 5800X3D Gaming Processor x1
