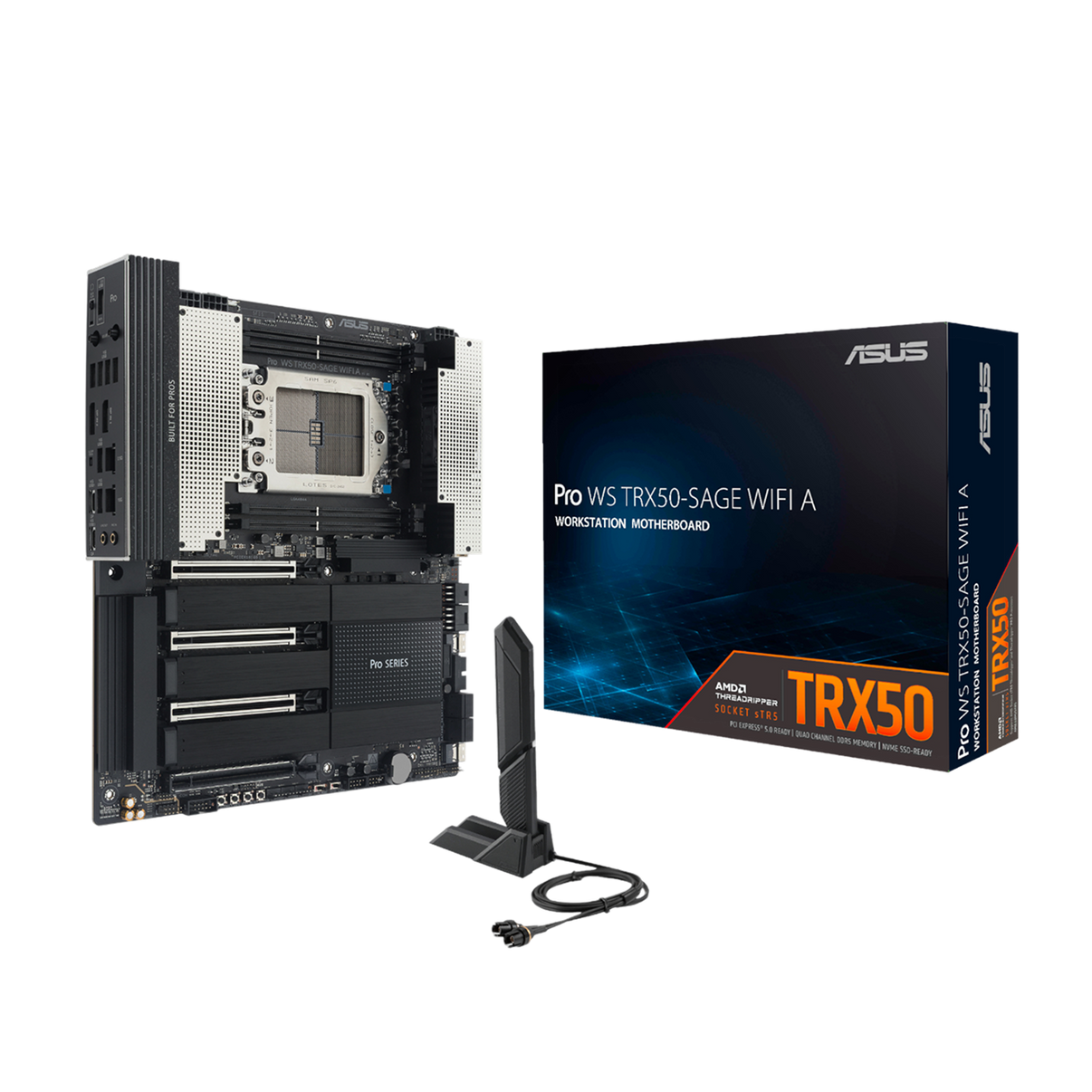

Asus Pro WS TRX50-SAGE WIFI A sTR5 CEB Motherboard

• Prepare for advanced artificial intelligence and machine learning workloads, leveraging dedicated hardware support.
• Harness the full potential of up to 96-core AMD sTR5 CPUs, facilitating complex computational tasks with ease.
• Maximise memory performance with support for up to 1TB ECC R-DIMM DDR5 memory modules, ensuring data integrity.
• Maintain optimal system temperatures through robust VRM cooling, chipset, and M.2 heatsinks for sustained peak operation.
• Experience rapid data transfers with three PCIe 5.0 x16 slots and two USB4 (40Gbps) ports for cutting-edge expansion.
• Ensure reliable network speeds with integrated 10 Gb and 2.5 Gb LAN ports, crucial for demanding professional environments.
• Accelerate storage access with four dedicated M.2 slots and SlimSAS NVMe support, providing ample ultra-fast storage.
• Manage your system remotely using server-grade IPMI capabilities for enhanced control and peace of mind.
• Benefit from proven, consistent performance through rigorous 24/7
  operational validation, ensuring a dependable AMD workstation
  motherboard.

CPU:

• AMD Socket sTR5 for Ryzen™ Threadripper™ PRO 9000 & 7000 WX-Series and Ryzen™ Threadripper™ 9000 & 7000 Series Processors**
• **System boot may take longer with Threadripper™ 9000 series CPUs due to memory calibration. This behavior is normal. Please allow sufficient time for the process to complete.

Chipset: AMD TRX50 Chipset

Memory:

• 4 x DIMM slots, DDR5, ECC Registered Memory*
• 4 Channel Memory Architecture
• * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration.
• For more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.

Expansion Slots:

• AMD Ryzen™ Threadripper™ PRO 9000 & 7000 WX-Series and Ryzen™ Threadripper™ 9000 & 7000 Series Processors
• 3 x PCIe 5.0 x16 slots
• 1 x PCIe 4.0 x16 slot
• * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/)

Storage:

• Total supports 4 x M.2 slots, 4 x SATA 6Gb/s ports , 2 x SlimSAS ports
• AMD Ryzen™ Threadripper™ PRO 9000 & 7000 WX-Series and AMD Ryzen™ Threadripper™ 9000 & 7000 Series Processors
• M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**
• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**
• AMD TRX50 Chipset
• M.2_3 slot (Key M), type 2280(supports PCIe 4.0 x4 mode),shared bandwidth with SlimSAS_2***
• 4 x SATA 6Gb/s ports
• SlimSAS_2 slot supports PCIe 4.0 x4 mode NVMe device, shared bandwidth M.2_3***
• AMD Ryzen™ Threadripper™ PRO 9000 & 7000 WX-Series
• M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)****
• SlimSAS_1 slot supports PCIe 4.0 x4 mode NVMe device****
• * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10.
• ** M.2_1 & M.2_2 slots only support PCIe 4.0 x4 mode when using Threadripper 7000 non-pro series CPUs
• *** M.2_3 slot shares bandwidth with SlimSAS_2.When M.2_3 slot is operating, SlimSAS_2 will be disabled, and vice versa.
• **** Supported when the Threadripper™ PRO series CPU is installed.

RAID:

• AMD RAIDXpert2 Technology
• PCIe RAID 0/1/5/10
• SATA RAID 0/1/5/10

Ethernet:

• 1 x Marvell® AQtion 10Gb Ethernet
• 1 x Intel® I226-LM 2.5Gb Ethernet

Wireless & Bluetooth:

• Wi-Fi 7 (Realtek® RTL8922AE)
• 2×2 Wi-Fi 7* (802.11be)
• Supports 2.4/5/6GHz frequency band**
• Supports Wi-Fi 7 160MHz bandwidth
• Bluetooth® v5.4***
• *Wi-Fi features may vary depending on the operating system
• For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.
• For Windows 10, only Wi-Fi 6 is supported.
• ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
• *** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications.

Rear USB (Total 9 ports):

• 2 x USB4® (40Gbps) (2 x USB Type-C®)
• 6 x USB 10Gbps ports (6 x Type-A )
• 1 x USB 2.0 ports (1 x Type-A )

Front USB (Total 7 ports):

• 1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD)*
• 1 x USB 5Gbps header supports 2 additional USB 5G ports
• 2 x USB 2.0 headers support additional 4 USB 2.0 ports
• * USB Type-C® power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A

Audio:

• Realtek ALC1220P Surround Sound High Definition Audio CODEC*
• Impedance sense for front and rear headphone outputs
• Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
• Supports up to 32-Bit/192 kHz playback

Audio Features:

• Audio Shielding
• Dedicated audio PCB layers
• Unique de-pop circuit
• * A chassis with an HD audio module in the front panel is required to support 5.1 Surround Sound audio output.
• * This motherboard will only support up to 5.1 Surround Sound due to the number of audio ports available on the motherboard.

Back Panel I/O Ports:

• 2 x USB4® (40Gbps) ports (2 x USB Type-C®)
• 6 x USB 10Gbps ports (6 x Type-A)
• 1 x USB 2.0 port (1 x Type-A)
• 2 x DisplayPort IN
• 1 x Wi-Fi Module
• 1 x Marvell® AQtion 10Gb Ethernet port
• 1 x Intel® 2.5Gb Ethernet port
• 2 x Audio jacks
• 1 x BIOS FlashBack™ button
• 1 x Clear CMOS button

Operating System: Windows 11

Form Factor: CEB (30.5 x 28 cm)

• Supports AMD sTR5 processors for up to 96 cores, facilitating advanced computational tasks.
• Optimised for artificial intelligence and machine learning applications.
• Features three PCIe 5.0 x16 slots for next-generation expansion cards.
• Includes 10 Gb and 2.5 Gb LAN ports for reliable, high-speed network access.
• Designed for continuous, 24/7 operation with robust power and thermal management.

• Asus Pro WS TRX50-SAGE WIFI A sTR5 CEB Motherboard x1
• SATA 6Gb/s cables x2
• Thermistor cable pack x1
• DisplayPort cable x1
• 4pin to 24-pin ATX power connector x1
• ASUS WiFi Q-Antenna x1
• M.2 Q-Latch package(2 in 1) x2
• M.2 Q-Slide package x2
• M.2 Rubber Packages x2
• Fan bracket x1
• Q-connector x1
• ACC Express Activation Key Card x1
• QSG x1
