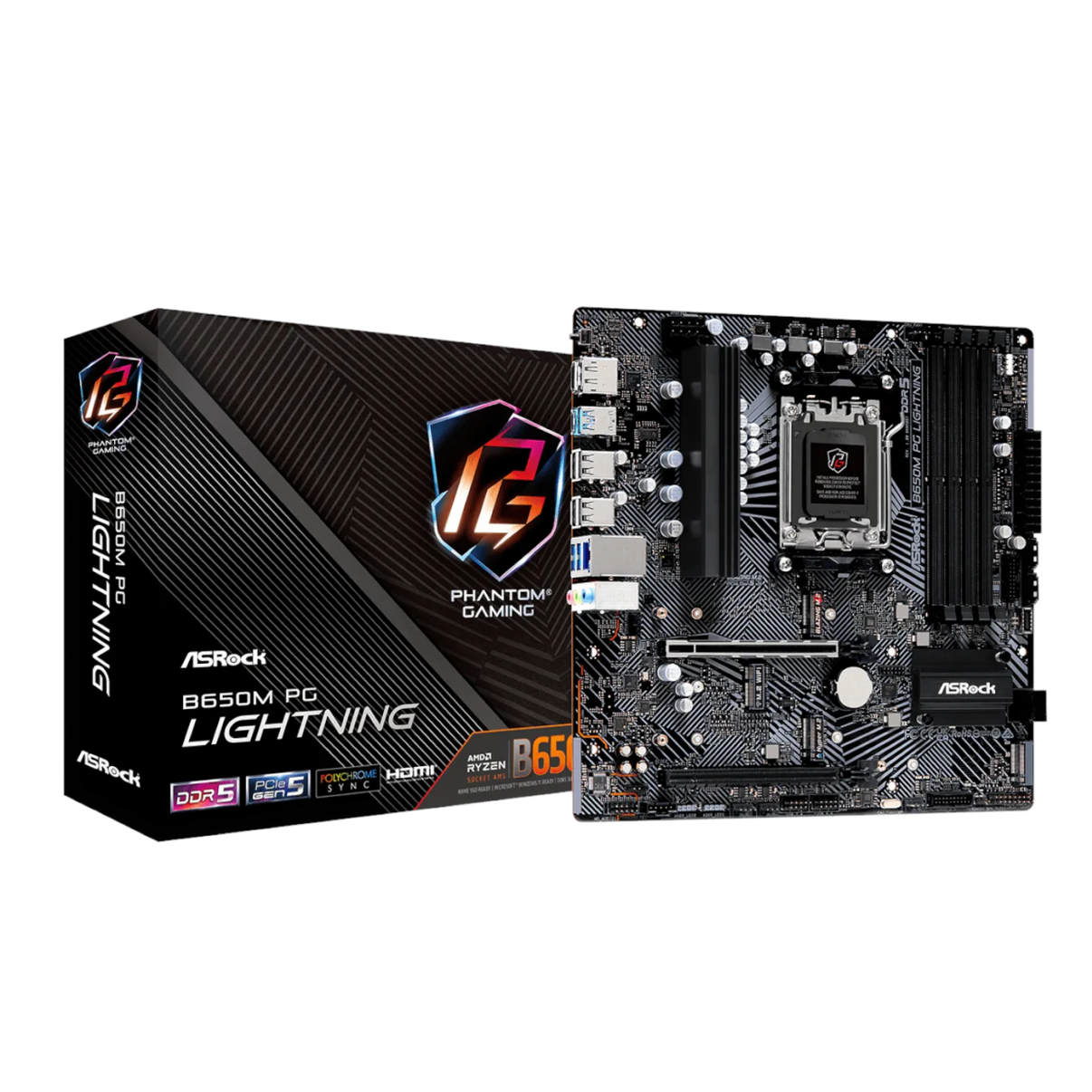

ASRock B650M PG Lightning AMD AM5 Micro ATX Motherboard

• Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
• 6+2+1 Power Phase, Dr.MOS
• 4 x DDR5 DIMMs
• Supports Dual Channel, up to 7200+ (OC)
• 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 M.2 Key-E for Wi-Fi
• Graphics Output: HDMI, DisplayPort
• Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
• 4 SATA3, 1 Blazing M.2 (PCIe Gen5x4),
• 1 Hyper M.2 (PCIe Gen4x4), 1 M.2 (PCIe Gen4x2)
• 1 USB 3.2 Gen2 Type A+C (Rear),
• 1 USB 3.2 Gen1 Type-C (Front),
• 6 USB 3.2 Gen1 Type-A (2 Rear, 4 Front),
• Phantom Gaming 2.5G LAN
• Supports ASRock Auto Driver Installer, BIOS Flashback

CPU & Chipset

• Socket: AMD AM5
• Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors*
• Chipset: AMD B650
• *The availability of expansion slots may vary by CPU. Please refer to PCIe/M.2 Bandwidth Table for details.

Bios

• 256Mb AMI UEFI Legal BIOS with GUI support

Memory

• Dual Channel DDR5 Memory Technology
• 4 x DDR5 DIMM Slots
• Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC)*
• Max. capacity of system memory: 256GB
•  Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
• *Please refer to Memory Support List for more information.

Graphics Output

• Integrated AMD RDNA™ graphics (Actual support may vary by CPU)
• 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
• 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz

Expansion Slots

CPU:

• 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
• 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode*

Chipset:

• 1 x M.2 Socket (Key E), supports type 2230 Wi-Fi/BT PCIe Wi-Fi module
• Supports AMD CrossFire™
• 15μ Gold Contact in VGA PCIe Slot (PCIE1)
• * Supports NVMe SSD as boot disks

Audio

• 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
• Nahimic Audio

LAN

• 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
• Dragon RTL8125BG
• Supports Phantom Gaming LAN Software
• Smart Auto Adjust Bandwidth Control
• Visual User Friendly UI
• Visual Network Usage Statistics
• Optimized Default Setting for Game, Browser, and Streaming Modes
• User Customized Priority Control

Storage

CPU:

• 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode*

Chipset:

• 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
• 1 x M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode*
• 4 x SATA3 6.0 Gb/s Connectors
• * Supports NVMe SSD as boot disks

RAID

• Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
• Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*
• * Requires additional M.2 NVMe expansion cards to support RAID 10

USB

• 1 x USB 3.2 Gen2 Type-C (Rear)
• 1 x USB 3.2 Gen2 Type-A (Rear)
• 1 x USB 3.2 Gen1 Type-C (Front)
• 6 x USB 3.2 Gen1 Type-A (2 Rear, 4 Front)
• 8 x USB 2.0 (4 Rear, 4 Front)
• * All USB ports support ESD Protection

Connector

• 1 x SPI TPM Header
• 1 x Power LED and Speaker Header
• 1 x RGB LED Header*
• 3 x Addressable LED Headers**
• 1 x CPU Fan Connector (4-pin)***
• 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
• 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
• 1 x 24 pin ATX Power Connector
• 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
• 1 x Front Panel Audio Connector
• 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
• 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
• 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
• 1 x Front Panel Type C USB 3.2 Gen1 Header
• * Supports in total up to 12V/3A, 36W LED Strip
• ** Support in total up to 5V/3A, 15W LED Strip
• *** CPU_FAN1 supports the fan power up to 1A (12W).
• **** CPU_FAN2/WP supports the fan power up to 2A (24W).
• ***** CHA_FAN1~3/WP support the fan power up to 2A (24W).
• CPU_FAN2/WP and CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use.

Rear Panel I/O

• 2 x Antenna Mounting Points
• 1 x HDMI Port
• 1 x DisplayPort 1.4
• 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
• 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)
• 2 x USB 3.2 Gen1 Type-A Ports
• 4 x USB 2.0 Ports
• 1 x RJ-45 LAN Port
• 1 x BIOS Flashback Button
• HD Audio Jacks: Line in / Front Speaker / Microphone

Software

• ASRock Motherboard Utility (Phantom Gaming Tuning)
• ASRock Phantom Gaming LAN Software
• ASRock Polychrome SYNC*
• *These utilities can be downloaded from ASRock Live Update & APP Shop.

UEFI

•  ASRock Full HD UEFI
• ASRock Auto Driver Installer
• ASRock Instant Flash

• Form Factor
• Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
• OS Compatibility: Microsoft Windows® 10 64-bit / 11 64-bit
• Certifications:
• FCC, CE
• ErP/EuP ready (ErP/EuP ready power supply is required)
• warranty 3 years

ASRock B650M PG Lightning AMD AM5 Micro ATX Motherboard – Black x1
