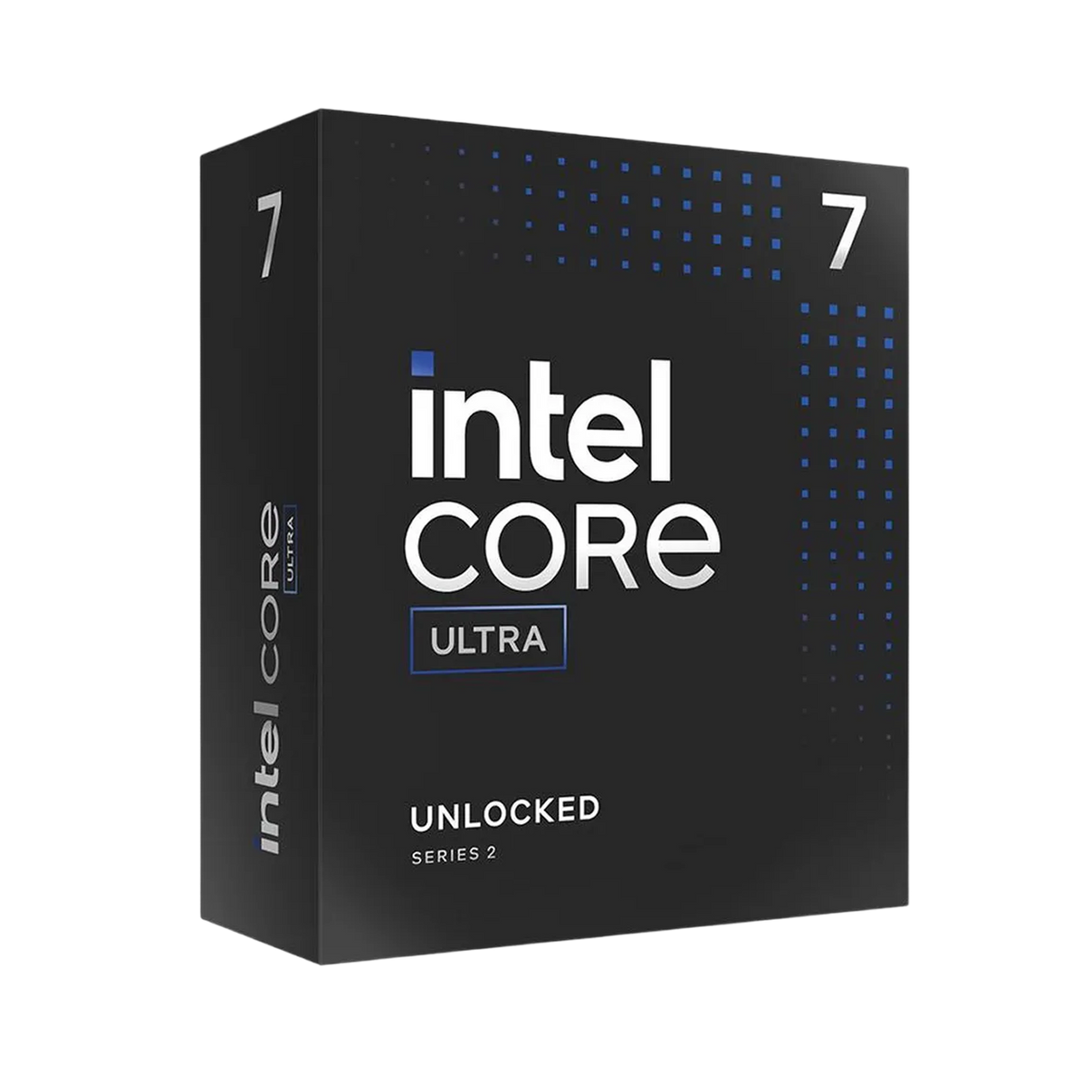

Intel® Core™ Ultra 7 265KF

• 20 Cores (8 Performance-cores, 12 Efficient-cores)
• 20 Threads
• Max Turbo Frequency up to 5.5 GHz
• 30 MB Intel® Smart Cache
• Total L2 Cache: 36 MB
• DDR5 memory support up to 6400 MT/s
• Intel® AI Boost NPU with 13 TOPS (Int8)
• PCI Express 5.0 and 4.0 support with up to 24 lanes
• Base Power: 125 W | Max Turbo Power: 250 W
• Warranty: 3 Years

CPU Specifications

• Total Cores: 20
• # of Performance-cores: 8
• # of Efficient-cores: 12
• Total Threads: 20
• Max Turbo Frequency: 5.5 GHz
• Intel® Turbo Boost Max Technology 3.0 Frequency: 5.5 GHz
• Performance-core Max Turbo Frequency: 5.4 GHz
• Efficient-core Max Turbo Frequency: 4.6 GHz
• Performance-core Base Frequency: 3.9 GHz
• Efficient-core Base Frequency: 3.3 GHz
• Cache: 30 MB Intel® Smart Cache
• Total L2 Cache: 36 MB
• Processor Base Power: 125 W
• Maximum Turbo Power: 250 W
• Intel® Deep Learning Boost (Intel® DL Boost) on CPU: Yes
• AI Software Frameworks Supported by CPU: OpenVINO, WindowsML, DirectML, ONNX RT, WebNN
• CPU Lithography: TSMC N3B

Memory Specifications

• Max Memory Size (dependent on memory type): 192 GB
• Memory Types: Up to DDR5 6400 MT/s
• Maximum Memory Speed: 6400 MHz
• Max # of Memory Channels: 2
• ECC Memory Supported: Yes

NPU Specifications

• NPU Name: Intel® AI Boost
• NPU Peak TOPS (Int8): 13
• Sparsity Support: Yes
• Windows Studio Effects Support: Yes
• AI Software Frameworks Supported by NPU: OpenVINO, WindowsML, DirectML, ONNX RT, WebNN

Expansion Options

• Direct Media Interface (DMI) Revision: 4
• Max # of DMI Lanes: 8
• Intel® Thunderbolt™ 4: Yes
• Scalability: 1S Only
• PCI Express Revision: 5.0 and 4.0
• PCI Express Configurations: Up to 1×16+2×4, 2×8+2×4, 1×8+4×4
• Max # of PCI Express Lanes: 24

Package Specifications

• Sockets Supported: FCLGA1851
• Thermal Solution Specification: PCG 2020A
• Max Operating Temperature: 105 °C

Advanced Technologies

• Intel® Gaussian & Neural Accelerator: 3.5
• Intel® Turbo Boost Technology: 2.0
• Intel® Turbo Boost Max Technology 3.0: Yes
• Instruction Set: 64-bit
• Instruction Set Extensions: Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
• Intel® vPro Eligibility: Intel® vPro Enterprise, Intel® vPro Platform
• Intel® Volume Management Device (VMD)
• Intel® Thread Director: Yes
• Intel® Speed Shift Technology: Yes
• Intel® 64: Yes
• Idle States: Yes
• Enhanced Intel SpeedStep® Technology: Yes
• Thermal Monitoring Technologies: Yes

Security & Reliability

• Intel® Standard Manageability (ISM)
• Intel® Control-Flow Enforcement Technology
• Intel® AES New Instructions
• Intel® Secure Key
• Intel® Trusted Execution Technology
• Execute Disable Bit
• Intel® OS Guard
• Intel® Boot Guard
• Mode-based Execute Control (MBEC)

CPU Intel® Core™ Ultra 7 Processor 265KF
