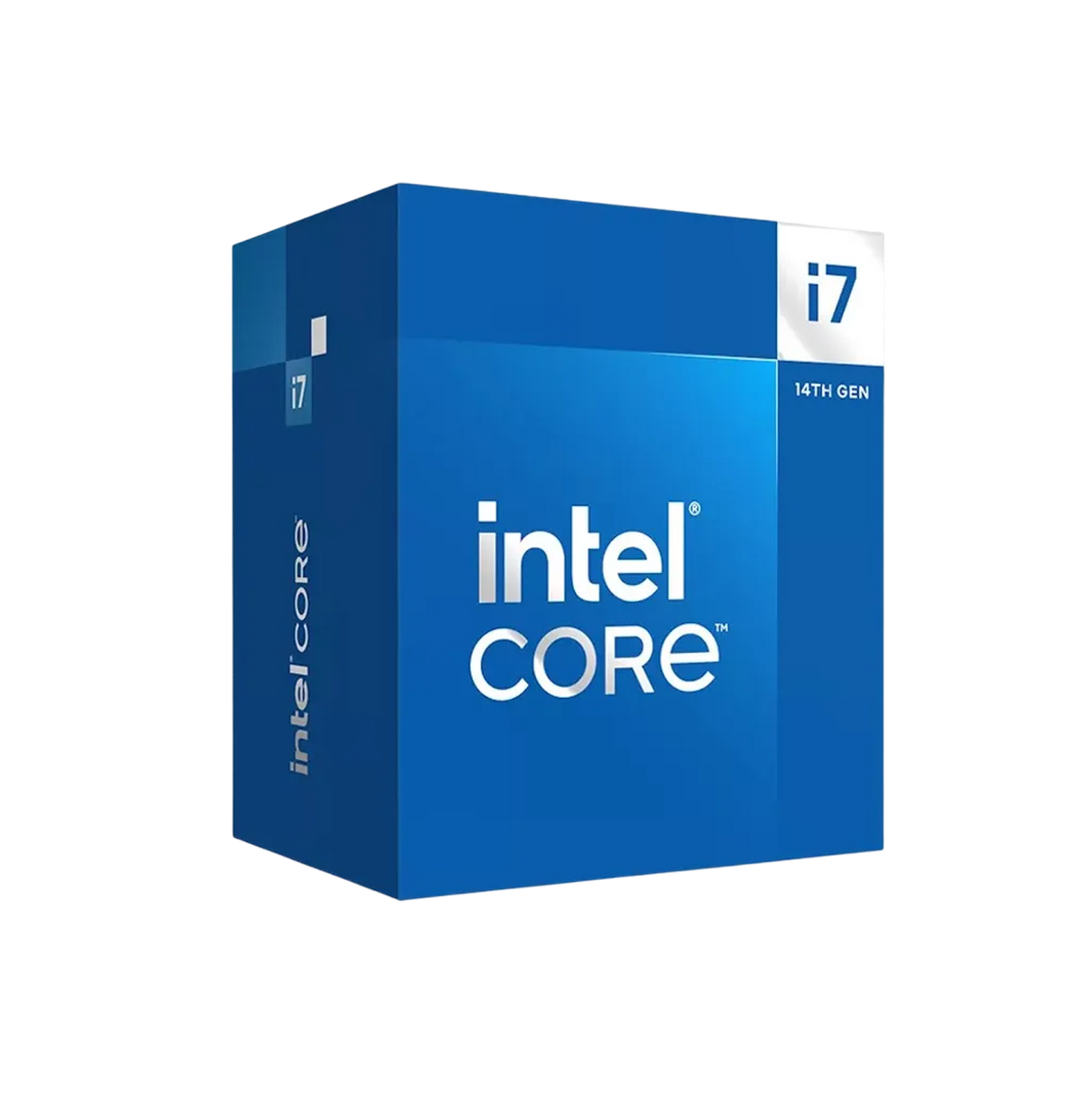

Intel® Core™ i7 processor 14700

• 20 Cores (8 Performance-cores, 12 Efficient-cores)
• 28 Threads
• Max Turbo Frequency up to 5.4 GHz
• 33 MB Intel® Smart Cache
• DDR5 support up to 5600 MT/s and DDR4 up to 3200 MT/s
• Integrated Intel® UHD Graphics 770 with 32 Execution Units
• PCI Express 5.0 and 4.0 support with up to 20 lanes
• Base Power: 65 W | Max Turbo Power: 219 W
• Warranty: 3 Years

Essentials

• Vertical Segment: Desktop
• Lithography: Intel 7
• Core Arrangement: 8 Performance Cores, 12 Efficiency Cores
• Cores: 20
• Threads: 28
• TJUNCTION: 100 °C

CPU Specifications

• Performance-core Max Turbo Frequency: 5.40 GHz
• Efficient-core Max Turbo Frequency: 4.20 GHz
• Performance-core Base Frequency: 2.10 GHz
• Efficient-core Base Frequency: 1.50 GHz
• Cache: 33 MB Intel® Smart Cache
• Processor Base Power: 65 W
• Maximum Turbo Power: 219 W

Memory

• Max Memory Supported: 192 GB
• Memory Types:
• Up to DDR5 5600 MT/s
• Up to DDR4 3200 MT/s
• Max Number of Memory Channels: 2
• Max Memory Bandwidth: 89.6 GB/s

Graphics

• Processor Graphics: Intel® UHD Graphics 770
• Graphics Base Frequency: 300 MHz
• Graphics Max Dynamic Frequency: 1.50 GHz
• Graphics Output: DisplayPort 1.4a, HDMI 2.1
• Execution Units: 32
• Max Resolution (HDMI): 4096 × 2160 @ 60Hz
• Max Resolution (DP): 7680 × 4320 @ 60Hz
• API Support: DirectX 12.1, OpenGL 4.5, OpenCL 3.0, Vulkan
• Multi-Format Codec Engines: 2
• Intel® Quick Sync Video Support: Yes
• Intel® Clear Video HD Technology Support: Yes
• Number of Displays Supported: 4

Expansion Options

• Direct Media Interface (DMI) Revision: 4
• Max Number of DMI Lanes: 8
• Scalability: Single socket
• PCI Express Revision: 5.0 and 4.0
• PCI Express Configurations: Up to 1×16 plus 4 lanes OR 2×8 plus 4 lanes
• Max Number of PCI Express Lanes: 20

Advanced Technologies

• Intel® Gaussian & Neural Accelerator: 3.0
• Intel® Thread Director
• Intel® Deep Learning Boost (Intel® DL Boost)
• Intel® Speed Shift Technology
• Intel® Turbo Boost Technology 2.0
• Intel® Hyper-Threading Technology
• Intel® 64
• Instruction Set: 64-bit
• Instruction Set Extensions: Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
• Idle States: Yes
• Enhanced Intel SpeedStep® Technology: Yes
• Thermal Monitoring Technologies: Yes
• Intel® Volume Management Device (VMD)

Security & Reliability

• Intel® Standard Manageability (ISM)
• Intel® Control-Flow Enforcement Technology
• Intel® AES New Instructions
• Intel® Secure Key
• Intel® OS Guard
• Intel® Trusted Execution Technology
• Execute Disable Bit
• Intel® Boot Guard
• Mode-based Execute Control (MBEC)
• Intel® Stable IT Platform Program (SIPP)
• Intel® Virtualization Technology with Redirect Protection (VT-rp)
• Intel® Virtualization Technology (VT-x)
• Intel® Virtualization Technology for Directed I/O (VT-d)
• Intel® VT-x with Extended Page Tables (EPT)

Operating System Support

• Windows 10 64-bit
• Windows 11 64-bit
• Linux x86-64

CPU Intel® Core™ i7 processor 14700
