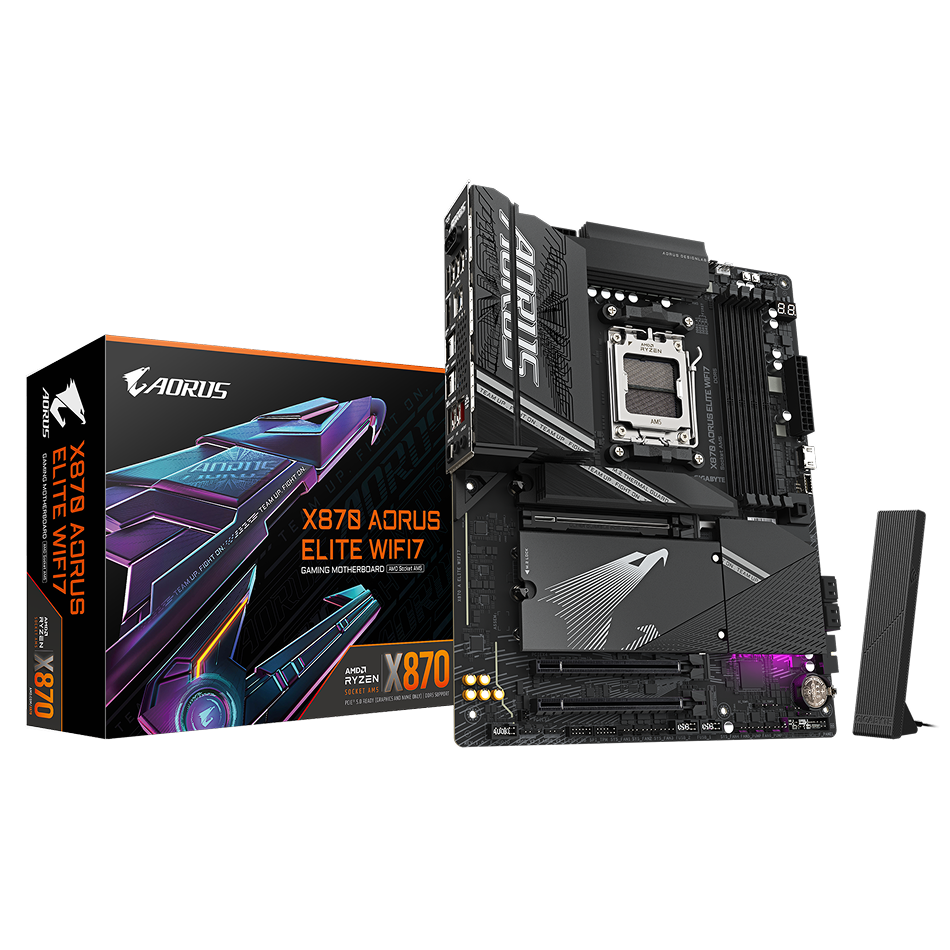

GIGABYTE X870 AORUS ELITE WIFI7

• AMD Socket AM5：Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
• Digital twin 16+2+2 phases VRM solution
• Dual Channel DDR5：4*DIMMs with AMD EXPO™Memory Module Support
• WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
• EZ-Latch Plus：PCIe and M.2 slots with Quick Release & Screwless Design
• EZ-Latch Click：M.2 heatsinks with screwless design
• Sensor Panel Link：Onboard video port for hassle-free in-chassis panel setup
• Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
• Ultra-Fast Storage：4*M.2 slots, including 3* PCIe 5.0 x4
• Efficient Thermal：VRM Thermal Armor Advanced & M.2 Thermal Guard L
• Fast Networking：2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
• Extended Connectivity：Dual USB4 Type-C with DP-Alt, HDMI
• Reliable Audio：Realtek ALC1220 HD Audio & Audiophile Grade Capacitors
• Ultra Durable PCIe Armor : The metal back plate of PCIe x16 slot for enhanced durability
• PCIe UD Slot X： PCIe 5.0 x16 slot with 10X strength for graphics card

Chipset
AMD X870

Memory

• Support for DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules


• 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory


• Dual channel memory architecture


• Support for non-ECC Un-buffered DIMM 1Rx8 / 2Rx8 / 1Rx16 memory modules


• Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
  (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules. See "Memory Support List" on GIGABYTE's website.)



Onboard Graphics

• Integrated Graphics Processor with AMD Radeon™ Graphics support + ASMedia USB4® Controller:


• 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs (max resolution 3840x2160@240 Hz)


• Support for DisplayPort 1.4 version and HDR


• Integrated Graphics Processor with AMD Radeon™ Graphics support:


• 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz


• Support for HDMI 2.1 version, HDCP 2.3, and HDR
  ** Support for native HDMI 2.1 TMDS compatible ports


• 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz


• Support for HDMI 1.4 version


• Support for up to quad-display at the same time
  (Graphics specifications may vary depending on CPU support)



Audio

• Realtek® ALC1220 CODEC


• Back panel line out jack supports DSD audio


• High Definition Audio, 2 / 4 / 5.1 / 7.1-channel


• Audio jack functionality configurable via software


• Support for S/PDIF Out



LAN

• Realtek® 2.5GbE LAN chip (2.5 Gbps / 1 Gbps / 100 Mbps)



Wireless Communication module

• MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0)


• WIFI a, b, g, n, ac, ax, supporting 2.4 / 5 / 6 GHz bands


• BLUETOOTH 5.4


• Support for 11be 160MHz wireless standard


• Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.1)


• WIFI a, b, g, n, ac, ax, supporting 2.4 / 5 / 6 GHz bands


• BLUETOOTH 5.4


• Support for 11be 160MHz wireless standard
  (Actual data rate may vary. Wi-Fi 7 requires Windows 11 SV3; Windows 10 not supported.)
  Wi-Fi 7 channels on 6 GHz depend on country regulations



Expansion Slots

• 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:


• AMD Ryzen™ 9000 / 7000 Series Processors support PCIe 5.0 x16 mode


• The M2B_CPU and M2C_CPU connectors share bandwidth with PCIEX16; when populated, PCIEX16 runs at up to x8 mode


• AMD Ryzen™ 8000 Series-Phoenix 1 supports PCIe 4.0 x8


• AMD Ryzen™ 8000 Series-Phoenix 2 supports PCIe 4.0 x4


• PCIEX16 supports only a graphics card or NVMe SSD


• Chipset:


• 1 x PCI Express x16 slot, PCIe 4.0 x4 (shares bandwidth with M2D_SB)


• 1 x PCI Express x16 slot, PCIe 3.0 x2



Storage Interface

• 1 x M.2 (M2A_CPU), Socket 3, M key, 25110 / 22110 / 2580 / 2280 SSDs


• Ryzen 9000 / 7000: PCIe 5.0 x4/x2


• Ryzen 8000 Phoenix 1 / 2: PCIe 4.0 x4/x2


• 2 x M.2 (M2B_CPU, M2C_CPU), Socket 3, M key, 22110 / 2280 SSDs


• Ryzen 9000 / 7000: PCIe 5.0 x4/x2


• Ryzen 8000 Phoenix 1 / 2: unavailable


• 1 x M.2 (M2D_SB), Chipset, Socket 3, M key, PCIe 4.0 x4/x2


• 4 x SATA 6Gb/s connectors


• RAID 0 / 1 / 5 / 10 for NVMe SSDs (RAID 5 only for Ryzen 9000)


• RAID 0 / 1 / 10 for SATA devices



USB

• CPU + ASMedia USB4®: 2 x USB4® Type-C® (back panel)


• CPU + USB 3.2 Gen 1 Hub: 4 x USB 3.2 Gen 1 (back panel)


• CPU + USB 2.0 Hub: 4 x USB 2.0 / 1.1 (back panel)


• Chipset:


• 1 x USB Type-C® USB 3.2 Gen 2x2 (internal header)


• 2 x USB 3.2 Gen 2 Type-A (red, back panel)


• 2 x USB 3.2 Gen 1 (internal header)


• 4 x USB 2.0 / 1.1 (internal headers)



Internal I/O Connectors

• 1 x 24-pin ATX power


• 2 x 8-pin ATX 12V power


• 1 x CPU fan header


• 1 x CPU fan / water pump header


• 4 x system fan headers


• 2 x system fan / water pump headers


• 3 x addressable RGB Gen2 headers


• 1 x RGB LED header


• 4 x M.2 Socket 3 connectors


• 4 x SATA 6Gb/s connectors


• 1 x front panel header


• 1 x front panel audio header


• 1 x USB Type-C® header USB 3.2 Gen 2x2


• 1 x USB 3.2 Gen 1 header


• 2 x USB 2.0 / 1.1 headers


• 1 x noise detection header


• 1 x TPM header (GC-TPM2.0 SPI modules only)


• 1 x HDMI port (Note)


• 1 x power button


• 1 x reset button


• 2 x temperature sensor headers


• 1 x reset jumper


• 1 x Clear CMOS jumper



Back Panel Connectors

• 1 x Q-Flash Plus button


• 1 x HDMI port (Note)


• 2 x antenna connectors (2T2R)


• 2 x USB4® Type-C® (DisplayPort)


• 2 x USB 3.2 Gen 2 Type-A (red)


• 4 x USB 3.2 Gen 1 ports


• 4 x USB 2.0 / 1.1 ports


• 1 x RJ-45


• 1 x optical S/PDIF Out


• 2 x audio jacks



I/O Controller

• iTE® I/O Controller Chip



H/W Monitoring

• Voltage / Temperature / Fan speed / Water flow rate / Fan fail warning / Fan speed control


• Noise detection


• Fan / pump speed control depends on installed fan / pump



BIOS

• 1 x 256 Mbit flash


• Licensed AMI UEFI BIOS


• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0



Unique Features

• Support for GIGABYTE Control Center (GCC)



Support for Q-Flash / Q-Flash Plus / Smart Backup

Bundled Software

• Norton® Internet Security (OEM)


• LAN bandwidth management software



Operating System

• Windows 11 64-bit



Form Factor

• ATX Form Factor; 30.5cm x 24.4cm
