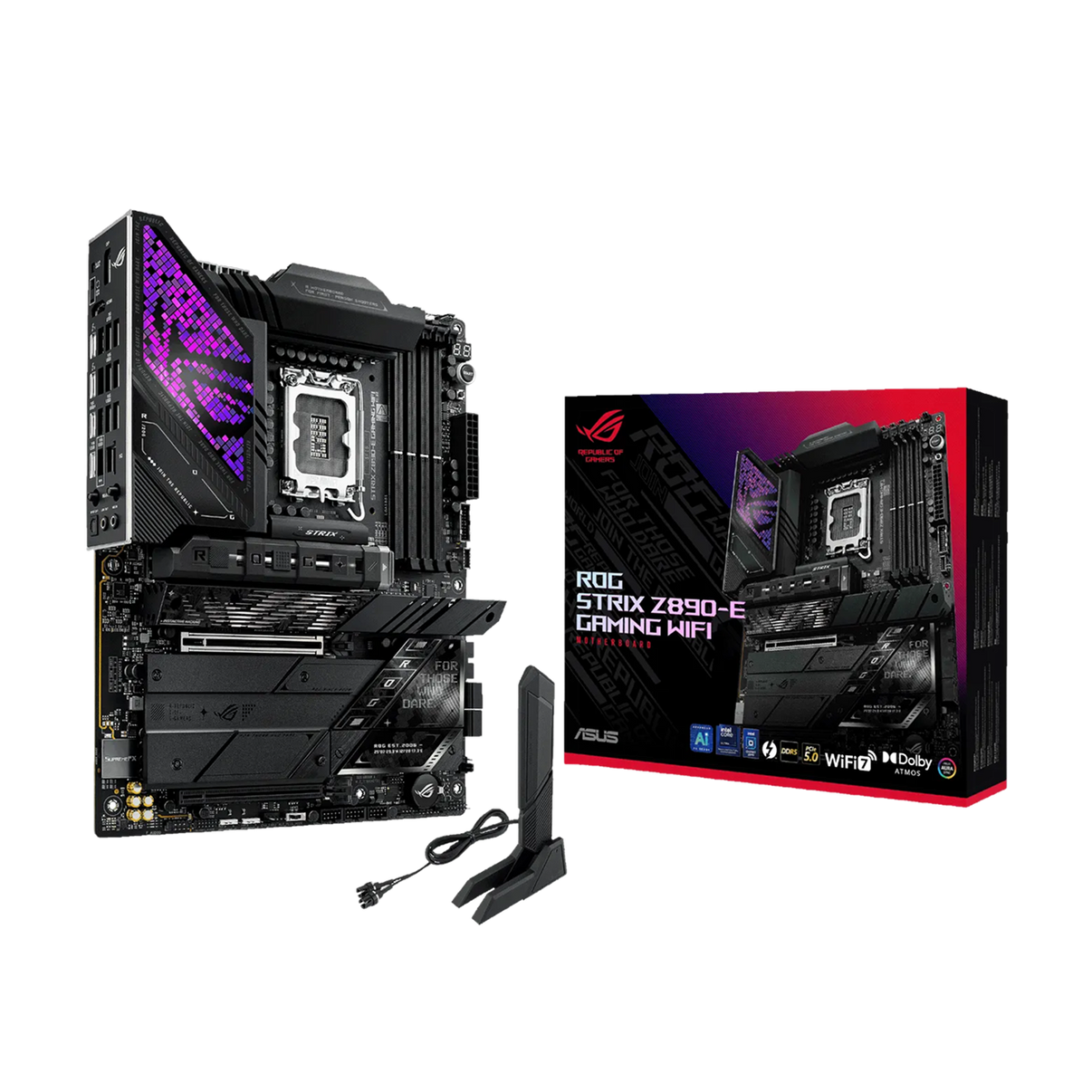

Asus ROG Strix Z890-E Gaming WIFI Intel LGA1851 ATX Gaming Motherboard

• Dominate the competition with robust power delivery designed for Intel LGA1700 processors, ensuring unthrottled performance.
• Experience blazing-fast data transfer and next-generation gaming with PCIe 5.0 support for graphics cards and NVMe SSDs.
• Achieve seamless online gameplay and rapid downloads with the integrated Wi-Fi 7 connectivity.
• Maintain optimal system temperatures and acoustics with intelligent AI Cooling technology.
• Unlock peak CPU performance effortlessly with AI Overclocking, tailored to your system’s capabilities.
• Enjoy enhanced audio immersion with high-fidelity onboard audio solutions.
• Streamline your build process with user-friendly features and comprehensive BIOS options.

CPU

• Intel® Socket LGA1851 for Intel® Core™ Ultra Processors(Series 2)
• Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
• * Refer to https://www.asus.com/support/download-center/ for CPU support list.
• ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

• Intel® Z890 Chipset

Memory

• 4 x DIMM slots, max. 256GB, DDR5
• Support up to 9200+MT/s (OC), Non-ECC, Clocked Unbuffered DIMM (CUDIMM)*
• Dual Channel Memory Architecture
• Supports Intel® Extreme Memory Profile (XMP) memory module
• Supports DIMM Flex
• NitroPath DRAM Technology
• DIMM Fit
• ASUS Enhanced Memory Profile III (AEMP III)

Graphics

• 1 x DisplayPort**
• 1 x HDMI® port***
• 2 x Intel® Thunderbolt™ 4 support DisplayPort and Thunderbolt™ video outputs****

Expansion Slots

• Intel® Core™ Ultra Processors(Series 2)*
• 1 x PCIe 5.0 x16 slot (supports x16 or x8/x4/x4 modes)
• Intel® Z890 Chipset
• 1 x PCIe 4.0 x16 slot (supports x4 mode)
• * Please check PCIe bifurcation table in support site (https://www.asus.com/support/FAQ/1037507/).
• – To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

Storage

• Total supports 7 x M.2 slots and 4 x SATA 6Gb/s ports*
• Intel® Core™ Ultra Processors(Series 2)*
• M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
• M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
• M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**
• M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**
• Intel® Z890 Chipset
• M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
• M.2_6 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
• M.2_7 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
• 4 x SATA 6Gb/s ports
• * Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.
• ** M.2_3 & M.2_4 slots share bandwidth with PCIEX16(G5). When M.2_3 & M.2_4 are occupied with SSD devices, PCIEX16(G5) will run x8 only.

Ethernet

• 1 x Realtek 5Gb Ethernet
• ASUS LANGuard

Wireless & Bluetooth

• Wi-Fi 7*
• 2×2 Wi-Fi 7 (802.11be)
• Supports 2.4/5/6GHz frequency band**
• Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate.
• Bluetooth® v5.4***
• *Wi-Fi features may vary depending on the operating system
• For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.
• For Windows 10, only Wi-Fi 6 is supported.
• ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
• *** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications.

Audio

• ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*
• – Impedance sense for front and rear headphone outputs
• – Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
• – High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
• – Supports up to 32-Bit/384 kHz playback on front panel

Audio Features

• – Audio Shielding
• – Savitech SV3H712 AMP
• – Gold-plated audio jacks
• – Rear optical S/PDIF out port
• – Premium audio capacitors
• – Audio cover

Back Panel I/O Ports

• 2 x Thunderbolt™ 4 (2 x USB Type-C®)
• 9 x USB 10Gbps ports (7 x Type-A + 1 x USB Type-C® + 1 x USB Type-C® with up to 30W PD Fast-charge)
• 3 x USB 5Gbps ports (3 x Type-A)
• 1 x DisplayPort
• 1 x HDMI® port
• 1 x Wi-Fi Module
• 1 x Realtek 5Gb Ethernet
• 2 x Gold-plated audio jacks
• 1 x Optical S/PDIF out port
• 1 x BIOS FlashBack™ button
• 1 x Clear CMOS button
• Internal I/O Connectors
• Fan and Cooling related
• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 1 x 4-pin AIO Pump header
• 5 x 4-pin Chassis Fan headers
• Power related
• 1 x 24-pin Main Power connector
• 2 x 8-pin +12V CPU Power connectors
• Storage related
• 7 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports

USB

• 1 x USB 20Gbps connector (supports USB Type-C®)
• 2 x USB 5Gbps headers support additional 4 USB 5Gbps ports
• 3 x USB 2.0 headers support additional 6 USB 2.0 ports

Miscellaneous

• 3 x Addressable Gen2 headers
• 1 x Chassis Intrusion header
• 1 x CPU Over Voltage jumper
• 1 x FlexKey button
• 1 x Front Panel Audio header (F_AUDIO)
• 1 x Start button
• 1 x 10-1 pin System Panel header
• 1 x Alteration PCIe mode switch
• 1 x Thermal Sensor header
• 1 x Thunderbolt™ (USB4®) header

BIOS

• 256 Mb Flash ROM, UEFI AMI BIOS

Manageability

• WOL by PME, PXE

Operating System

• Windows® 11 (22H2 & later)

Form Factor

• ATX Form Factor
• 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Warranty

• 3 years

• Engineered for Intel LGA1851 processors, providing a stable foundation for peak performance.
• Robust power delivery system ensures consistent, unthrottled performance for demanding CPUs.
• High-speed connectivity, including Wi-Fi 7 and multiple PCIe 5.0 slots, for next-generation gaming.
• Advanced cooling solutions to maintain optimal temperatures during intense gaming sessions.
• Integrated AI Overclocking and AI Cooling for effortless performance tuning and system stability.

• Asus ROG Strix Z890-E Gaming WIFI Intel LGA1851 ATX Gaming Motherboard – Black x1
• SATA 6Gb/s cables x2
• Thermal pad for M.2 22110 x1
• ASUS Wi-Fi Q-Antenna x1
• Cable ties pack x1
• M.2 Q-Latch package x1
• M.2 Q-Slides x2
• ROG key chain x1
• ROG Strix stickers x1
• M.2 Rubbers x7
• Quick start guide x1
