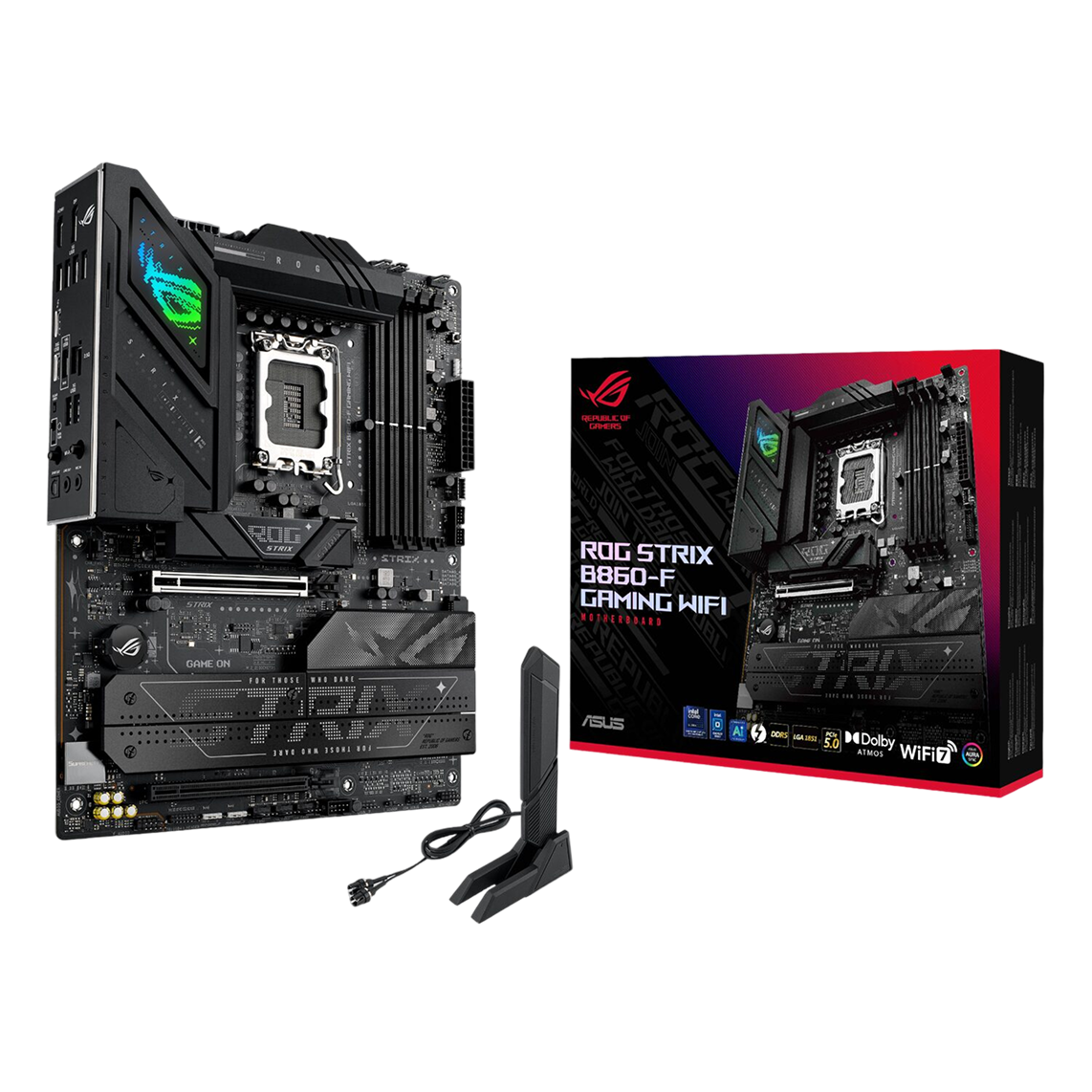

ASUS ROG STRIX B860-F Gaming Wi-Fi

• AI suite 3 & armoury crate
• Thunderbolt™ 4 header support
• Integrated Wi-Fi 7 & Intel 2.5Gb ethernet
• PCIe 5.0 expansion: Ideal for modern GPUs and NVMe drives
• DDR5 memory support:  High-bandwidth DDR5 memory modules
• ROG SupremeFX audio with premium capacitors and advanced shielding
• Aesthetic ROG design – Sleek black PCB, RGB headers, and bold cybertext design
• Robust power solution: 16+1+1 power stages, alloy chokes, and durable capacitors
• Intel LGA1851 socket – Compatible with 14th and 13th Gen Intel® Core™ processors
• DIY-friendly layout includes pre-mounted I/O shield, Q-LED diagnostic, PCIe Slot Q-Release, and BIOS FlashBack™

CPU:

• Intel® Socket LGA1851 for Intel® Core™ Ultra Processors(Series 2)
• Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
• Chipset: Intel® B860 Chipset

Memory:

• 4 x DIMM slots, max. 256GB, DDR5
• Support up to 9066MT/s (OC), Non-ECC, Un-buffered,Clocked Unbuffered DIMM (CUDIMM)*
• Dual-channel memory architecture
• Supports Intel® Extreme Memory Profile (XMP) memory module
• DIMM Fit
• ASUS Enhanced Memory Profile III (AEMP III)

Graphics:

• 1 x DisplayPort
• 1 x HDMI™ port
• 1 x Intel® Thunderbolt™ 4 port (USB Type-C®) supports DisplayPort and Thunderbolt™ video outputs

Expansion Slots:

• Intel® Core™ Ultra Processors(Series 2)
• 1 x PCIe 5.0 x16 slot (supports x16 mode)
• Intel® B860 Chipset
• 1 x PCIe 4.0 x16 slot (supports x4 mode)

Storage:

• Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports
• Intel® Core™ Ultra Processors(Series 2)
• M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
• Intel® B860 Chipset
• M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
• M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
• M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
• 4 x SATA 6Gb/s ports

Ethernet

• 1 x Intel® 2.5Gb Ethernet
• ASUS LANGuard

Wireless & Bluetooth

• Wi-Fi 7
• 2×2 Wi-Fi 7 (802.11be)
• Supports 2.4/5/6GHz frequency band
• Supports Wi-Fi 7 160MHz bandwidth, with a transfer rate of up to 2.9Gbps.
• Bluetooth® v5.4

USB

• Rear USB (Total 9 ports)
• 1 x Thunderbolt™ 4 port (1 x USB Type-C®)
• 1 x USB 20Gbps port (1 x USB Type-C®)
• 1 x USB 10Gbps port (1 x Type-A)
• 6 x USB 5Gbps ports (6 x Type-A)
• Front USB (Total 6 ports)
• 1 x USB 10Gbps (1 x USB Type-C®)
• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
• 2 x USB 2.0 headers support 3 additional USB 2.0 ports
• ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
• Impedance sense for front and rear headphone outputs
• Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
• High-quality 120 dB SNR stereo playback output and 110 dB SNR recording input
• Supports up to 32-bit/384 kHz playback on the front panel
• Audio Features
• SupremeFX Shielding Technology
• Savitech SV3H712 AMP
• Rear optical S/PDIF out port
• Premium audio capacitors- Audio cover

Back Panel I/O Ports

• 1 x Thunderbolt™ 4 (1 x USB Type-C®)
• 1 x USB 20Gbps port (1 x USB Type-C®)
• 1 x USB 10Gbps port (1 x Type-A)
• 6 x USB 5Gbps ports (6 x Type-A)
• 1 x DisplayPort
• 1 x HDMI™ port
• 1 x Wi-Fi module
• 1 x Intel® 2.5Gb Ethernet port
• 2 x audio jacks
• 1 x Optical S/PDIF out port
• 1 x BIOS FlashBack™ button
• 1 x Clear CMOS button

Internal I/O Connectors

• Fan and Cooling Related
• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 1 x 4-pin AIO Pump header
• 4 x 4-pin Chassis Fan headers
• Power Related
• 1 x 24-pin Main Power connector
• 2 x 8-pin +12V CPU Power connectors
• Storage Related
• 4 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports
• USB
• 1 x USB 10Gbps connector (supports USB Type-C®)
• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
• 2 x USB 2.0 headers support 3 additional USB 2.0 ports
• Miscellaneous
• 3 x Addressable Gen2 headers
• 1 x Chassis Intrusion header
• 1 x Front Panel Audio header (F_AUDIO)
• 1 x Start button
• 1 x 10-1 pin Front System Panel header
• 1 x Thermal Sensor header
• 1 x Thunderbolt™ (USB4®) header

• Extreme Engine Digi+
• 5K Black metallic capacitors
• ASUS Q-Design
• – M.2 Q-Latch
• – M.2 Q-Release
• – M.2 Q-Slide
• – PCIe Slot Q-Release Slim (with PCIe SafeSlot)
• – Q-Antenna
• – Q-Dashboard- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
• – Q-Slot
• ASUS Thermal Solution
• – M.2 heatsink backplate
• – M.2 heatsink
• – VRM heatsink design
• ASUS EZ DIY
• – BIOS FlashBack™ button
• – BIOS FlashBack™ LED
• – Clear CMOS button
• – CPU Socket lever protector
• – ProCool
• – Pre-mounted I/O shield
• – SafeSlot
• – SafeDIMM
• Aura Sync
• – Addressable Gen2 headers
• Software Features
• ROG Exclusive Software
• – ROG CPU-Z
• – Dolby Atmos
• ASUS Exclusive Software
• Armoury Crate
• – Aura Creator
• – Aura Sync
• – Fan Xpert 4
• – GameFirst
• – Power Saving
• ASUS Driver Hub
  AIDA64 Extreme (60-day free trial)
• HWiNFO
• ASUS GlideX
• TurboV Core
• Adobe Creative Cloud (Days Free Trial)
• Norton 360 for Gamers (60 Days Free Trial)
• WinRAR (40 Days Free Trial)
• UEFI BIOS
  NPU Boost
• ASUS EZ DIY
• – ASUS CrashFree BIOS 3
• – ASUS EZ Flash
• – ASUS UEFI BIOS EZ Mode
• – ASUS MyHotkey
• BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
• Manageability: WOL by PME, PXE
• Operating System: Windows® 11 (22H2 & later)
• Form Factor:
• ATX Form Factor
• 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

• Asus ROG STRIX B860-F Gaming Wi-Fi Motherboard – Intel LGA1851 x
• SATA 6Gb/s cables x2
• ASUS WiFi Q-Antenna x2
• Cable ties package x1
• M.2 Q-Latch package x1
• M.2 Q-Slide package x1
• ROG key chain x1
• ROG Strix stickers x1
• M.2 rubbers x4
• Quick start guide x1
